Description
SALOREX UNI EL.M6.ISO2-6H.-C VAP HSSE MACHINE TAP SL EL = extra long, with double overall length
Mat No: 2253806000, Article No: 22538060
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

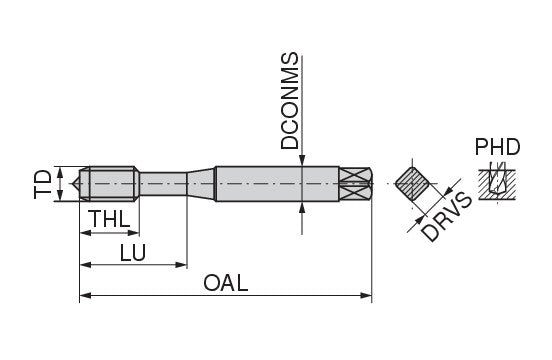

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI EL.M6.ISO2-6H.-C VAP HSSE MACHINE TAP SL 2253806000 (0655445) | |
| EDP # | 0655445 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.3 oz | 37.5 g |
| Thread tolerance class TCTR | ISO 2 6H | |
| Thread diameter range TD/d1 | M6 mm | |
| Thread pitch TP/p | 0.0394 inch | 1 mm |
| Overall length OAL/l1 | 6.2992 inch | 160 mm |
| Mounting spigot diameter DCONMS/d2 | 0.2362 inch | 6 mm |
| Drive size DRVS/a | 0.1929 inch | 4.9 mm |
| Premachined hole diameter PHD/d0 | 0.1969 inch | 5 mm |
| Thread cutting part length THL/l2 | 0.3937 inch | 10 mm |
| Usable length LU/l3 | 1.1811 inch | 30 mm |
| Flutes | 3 | |
Application & Properties:
Suitable Materials:
