Description
Note that this item has been discontinued and will not be re-stocked.

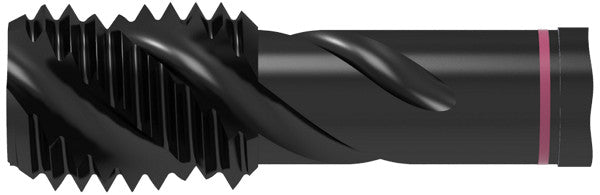

SALOREX UNI.UNC5/8-11.2B.-C VAP HSSE MACHINE TAP SL
Mat No: 2258306200, Article No: 22583062
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI.UNC5/8-11.2B.-C VAP HSSE MACHINE TAP SL 2258306200 (0655619) | |
| EDP # | 0655619 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 3.4 oz | 95.3 g |
| Thread tolerance class TCTR | 2B | |
| Thread Diameter Inch - Range TDIN/d1 | 5/8-11 | |
| Thread pitch TP/p | 0.0909 inch | 2.309 mm |
| Overall length OAL/l1 | 4.3307 inch | 110 mm |
| Mounting spigot diameter DCONMS/d2 | 0.4724 inch | 12 mm |
| Drive size DRVS/a | 0.3543 inch | 9 mm |
| Premachined hole diameter PHD/d0 | 0.5315 inch | 13.5 mm |
| Thread cutting part length THL/l2 | 0.8661 inch | 22 mm |
| Flutes | 3 | |
