Description
Note that this item has been discontinued and will not be re-stocked.
SALOREX UNI CNC.M10.7G.-C TIN GS HSSE MACHINE TAP SL CNC = for synchronised CNC machining with minimum length compensation chuck
Mat No: 2259410000, Article No: 22594100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

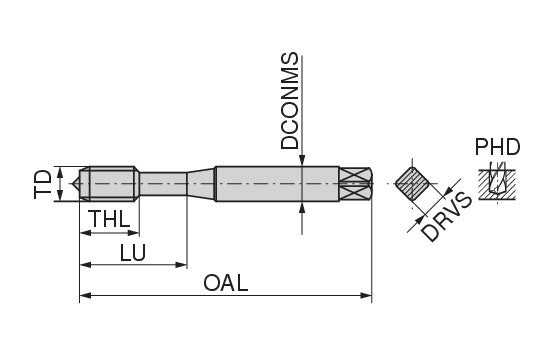

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI CNC.M10.7G.-C TIN GS HSSE MACHINE TAP SL 2259410000 (0655641) | |
| EDP # | 0655641 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.8 oz | 52.4 g |
| Thread tolerance class TCTR | 7G | |
| Thread diameter range TD/d1 | M10 mm | |
| Thread pitch TP/p | 0.0591 inch | 1.5 mm |
| Overall length OAL/l1 | 3.937 inch | 100 mm |
| Mounting spigot diameter DCONMS/d2 | 0.3937 inch | 10 mm |
| Drive size DRVS/a | 0.315 inch | 8 mm |
| Premachined hole diameter PHD/d0 | 0.3346 inch | 8.5 mm |
| Thread cutting part length THL/l2 | 0.6299 inch | 16 mm |
| Usable length LU/l3 | 1.5354 inch | 39 mm |
| Flutes | 3 | |
Application & Properties:
Suitable Materials:
