Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 22607125
Ceratizit Material Number: 2260712500
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

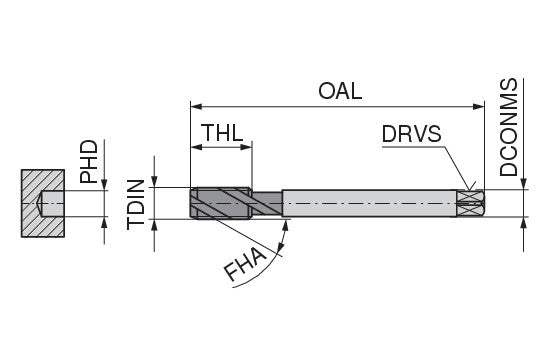

| Properties | ||
|---|---|---|
| Name | Ceratizit CavTap UNI.UNF1 1/4-12.2B.~DIN374-C VAP Blind Hole Machine taps, Right Hand 22607125 | |
| EDP # | 0655755 | |
| Weight (1 pc.) | 16.0 oz | 453 g |
| Thread Diameter Inch - Range / TDIN | 1 1/4-12 | |
| Thread pitch / TP | 0.0833' | 2.117 mm |
| Overall length / OAL | 5.9055' | 150.000 mm |
| Mounting spigot diameter / DCONMS | 0.8661' | 22.000 mm |
| Drive size / DRVS | 0.7087' | 18.000 mm |
| Premachined hole diameter / PHD | 1.1713' | 29.750 mm |
| Thread cutting part length / THL | 0.8661' | 22.000 mm |
| Flutes | 5 | |
| Thread tolerance class / TCTR | 2B | |
| Coating name / Grade (Ceratizit) / COATN | vap. | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
