Description
Note that this item has been discontinued and will not be re-stocked.
SALOREX EL.M4.ISO2-6H.DIN~371-C HSSE MACHINE TAP SL EL = extra long, with double overall length
Mat No: 2242204000, Article No: 22422040
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

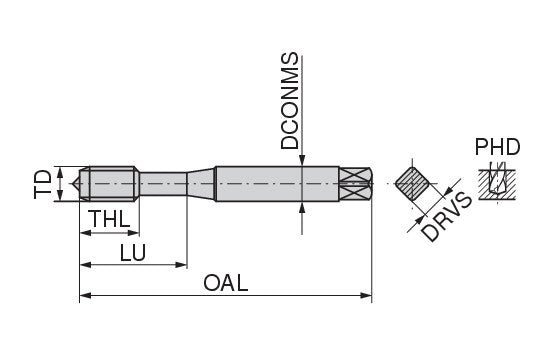

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX EL.M4.ISO2-6H.DIN~371-C HSSE MACHINE TAP SL 2242204000 (0655792) | |
| EDP # | 0655792 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.6 oz | 18.1 g |
| Thread diameter range TD/d1 | M4 mm | |
| Thread pitch TP/p | 0.0276 inch | 0.7 mm |
| Overall length OAL/l1 | 4.9213 inch | 125 mm |
| Mounting spigot diameter DCONMS/d2 | 0.1772 inch | 4.5 mm |
| Drive size DRVS/a | 0.1339 inch | 3.4 mm |
| Premachined hole diameter PHD/d0 | 0.1299 inch | 3.3 mm |
| Thread cutting part length THL/l2 | 0.2756 inch | 7 mm |
| Usable length LU/l3 | 0.8268 inch | 21 mm |
| Flutes | 3 | |
Application & Properties:
Suitable Materials:
