Description
SALOREX UNI.UNC1/4-20.2B+0,05.-C VAP HSSE MACHINE TAP SL
Mat No: 2227702500, Article No: 22277025
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI.UNC1/4-20.2B+0,05.-C VAP HSSE MACHINE TAP SL 2227702500 (0655825) | |
| EDP # | 0655825 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.7 oz | 20.2 g |

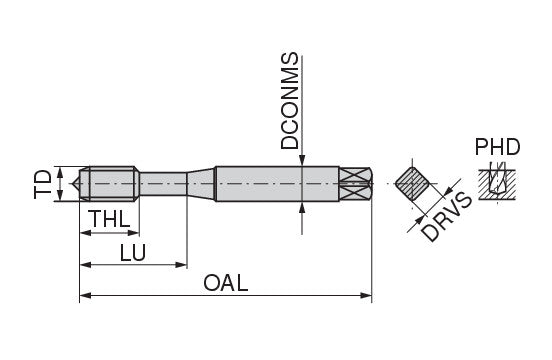

| Thread Diameter Inch - Range TDIN/d1 | 1/4-20 | |
| Thread pitch TP/p | 0.0500 inch | 1.27 mm |
| Overall length OAL/l1 | 3.1496 inch | 80 mm |
| Mounting spigot diameter DCONMS/d2 | 0.2756 inch | 7 mm |
| Drive size DRVS/a | 0.2165 inch | 5.5 mm |
| Premachined hole diameter PHD/d0 | 0.2028 inch | 5.15 mm |
| Thread cutting part length THL/l2 | 0.5118 inch | 13 mm |
| Usable length LU/l3 | 1.1811 inch | 30 mm |
| Flutes | 3 | |
Application & Properties:
Suitable Materials:
