Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 22132020
Ceratizit Material Number: 2213202000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

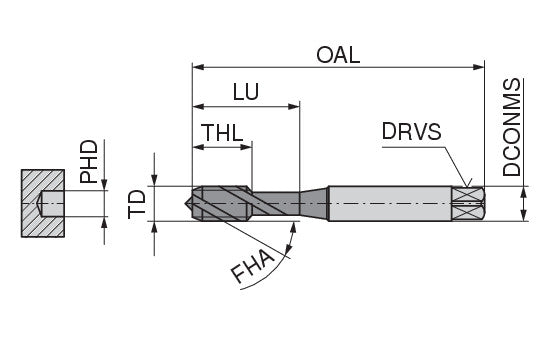

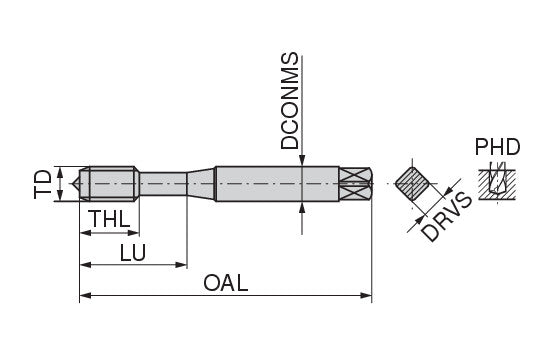

| Properties | ||
|---|---|---|
| Name | Ceratizit CavTap ST.M2.ISO1-4H.DIN371-C Blind Hole Machine Taps 22132020 | |
| EDP # | 0655878 | |
| Weight (1 pc.) | 0.1 oz | 3.2 g |
| Thread diameter range / TD | 0.0787' | 2.000 mm |
| Thread pitch / TP | 0.0157' | 0.400 mm |
| Overall length / OAL | 1.7717' | 45.000 mm |
| Mounting spigot diameter / DCONMS | 0.1102' | 2.800 mm |
| Drive size / DRVS | 0.0827' | 2.100 mm |
| Premachined hole diameter / PHD | 0.0630' | 1.600 mm |
| Thread cutting part length / THL | 0.1575' | 4.000 mm |
| Usable length / LU | 0.4724' | 12.000 mm |
| Flutes | 2 | |
| Thread tolerance class / TCTR | ISO 14H | |
| Coating name / Grade (Ceratizit) / COATN | blank | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
