Description
Note that this item has been discontinued and will not be re-stocked.

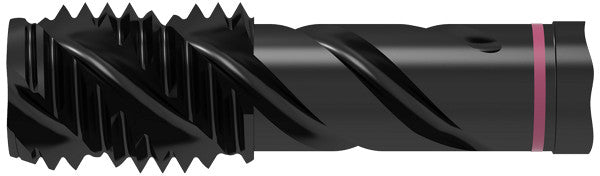

SALOREX UNI.M33.ISO2-6H.DIN376-C VAP HSSE MACHINE TAP SL
Mat No: 2251933000, Article No: 22519330
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

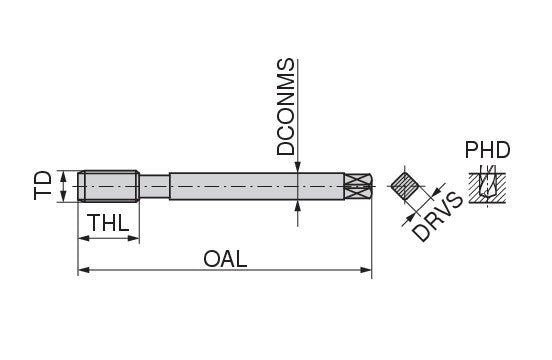

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI.M33.ISO2-6H.DIN376-C VAP HSSE MACHINE TAP SL 2251933000 (0655907) | |
| EDP # | 0655907 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 22.4 oz | 634.2 g |
| Thread diameter range TD/d1 | M33 mm | |
| Thread pitch TP/p | 0.1378 inch | 3.5 mm |
| Overall length OAL/l1 | 7.0866 inch | 180 mm |
| Mounting spigot diameter DCONMS/d2 | 0.9843 inch | 25 mm |
| Drive size DRVS/a | 0.7874 inch | 20 mm |
| Premachined hole diameter PHD/d0 | 1.1614 inch | 29.5 mm |
| Thread cutting part length THL/l2 | 1.378 inch | 35 mm |
| Flutes | 4 | |
Application & Properties:
Suitable Materials:
