Description
Note that this item has been discontinued and will not be re-stocked.
SALOREX VA.NPT1/2.~DIN374-E TIN HSSE MACHINE TAP DSL
Mat No: 2237205000, Article No: 22372050
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

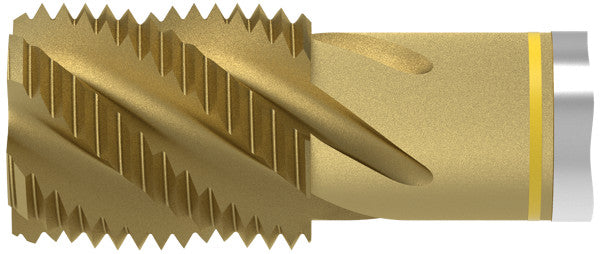

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX VA.NPT1/2.~DIN374-E TIN HSSE MACHINE TAP DSL 2237205000 (0655945) | |
| EDP # | 0655945 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 7.8 oz | 219.8 g |
| Thread Diameter Inch - Range TDIN/d1 | 1/2-14 | |
| Thread pitch TP/p | 0.0714 inch | 1.814 mm |
| Overall length OAL/l1 | 5.5118 inch | 140 mm |
| Mounting spigot diameter DCONMS/d2 | 0.6299 inch | 16 mm |
| Drive size DRVS/a | 0.4724 inch | 12 mm |
| Premachined hole diameter PHD/d0 | 0.7008 inch | 17.8 mm |
| Thread cutting part length THL/l2 | 0.9055 inch | 23 mm |
| Flutes | 5 | |
| LE lE | 0.7130 inch | 18.11 mm |
Application & Properties:
Suitable Materials:
