Description
Note that this item has been discontinued and will not be re-stocked.

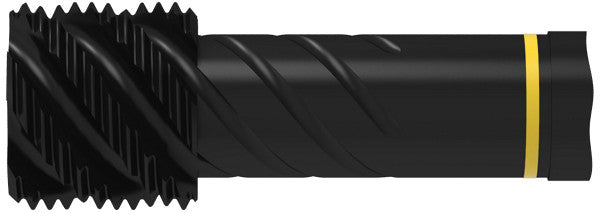

SALOREX VA.G5/8.ISO228.DIN5156-E VAP HSSE MACHINE TAP SL
Mat No: 2235506200, Article No: 22355062
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX VA.G5/8.ISO228.DIN5156-E VAP HSSE MACHINE TAP SL 2235506200 (0655993) | |
| EDP # | 0655993 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 8.0 oz | 226.8 g |
| Thread Diameter Inch - Range TDIN/d1 | 5/8-14 | |
| Thread pitch TP/p | 0.0714 inch | 1.814 mm |
| Overall length OAL/l1 | 4.9213 inch | 125 mm |
| Mounting spigot diameter DCONMS/d2 | 0.7087 inch | 18 mm |
| Drive size DRVS/a | 0.5709 inch | 14.5 mm |
| Premachined hole diameter PHD/d0 | 0.8268 inch | 21 mm |
| Thread cutting part length THL/l2 | 0.6693 inch | 17 mm |
| Flutes | 5 | |
Application & Properties:
Suitable Materials:
