Note that this item has been discontinued and will not be re-stocked.
N.TO.1,0.30°.Z2.R0,2.HA.L5,0 DPA72S SOLID CARBIDE MICRO TORUS MILLING CUTTER T x = maximum engagement depth
Mat No: 5280610500, Article No: 52806105
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

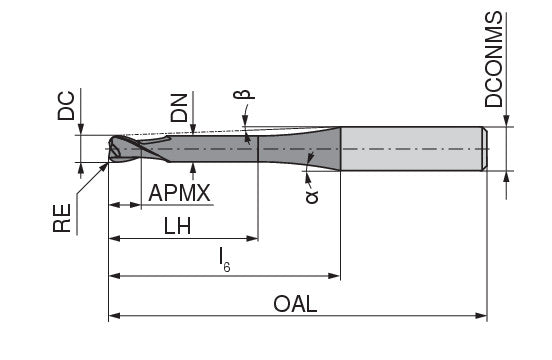

| Properties | ||
|---|---|---|
| Name | CERATIZIT N.TO.1,0.30°.Z2.R0,2.HA.L5,0 DPA72S SOLID CARBIDE MICRO TORUS MILLING CUTTER 5280610500 (0656250) | |
| EDP # | 0656250 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.6 oz | 16.0 g |
| Cutting diameter DC/d1 ±0.01 | 0.0394 inch | 1 mm |
| Corner radius RE/r ±0.005 | 0.0079 inch | 0.2 mm |
| Depth of cut maximum APMX/l2 | 0.0394 inch | 1 mm |
| Neck Diameter DN/d3 | 0.0315 inch | 0.8 mm |
| Head length LH/l3 | 0.1969 inch | 5 mm |
| L6 l6 | 0.4567 inch | 11.6 mm |
| Protruding length LPR/l5 | 0.4606 inch | 11.7 mm |
| Overall length OAL/l1 | 2.3622 inch | 60 mm |
| Alpha b° | 15 | |
| Beta a° | 8 | |
| Mounting spigot diameter DCONMS/d2 h5 | 0.1575 inch | 4 mm |
| Peripheral effective cutting edge count ZEFP/Z | 2 | |
Application & Properties:
Suitable Materials:
