Ceratizit N.RD.0,6.30°.Z2.HA.K6 DPA72S CoreLine - Micro-ball Nosed Cutter - 5280406700 (0656362)
Ceratizit N.RD.0,6.30°.Z2.HA.K6 DPA72S CoreLine - Micro-ball Nosed Cutter - 5280406700 (0656362)
Couldn't load pickup availability
Ceratizit Article Number: 5280406700
Ceratizit Material Number: 5280406700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

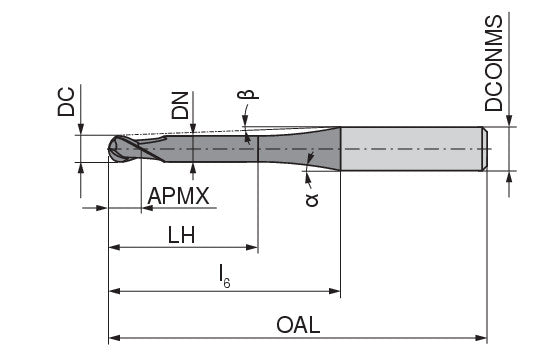

| Properties | ||
|---|---|---|
| Name | Ceratizit N.RD.0,6.30°.Z2.HA.K6 DPA72S CoreLine - Micro-ball Nosed Cutter - 5280406700 | |
| EDP # | 0656362 | |
| Weight (1 pc.) | 0.3 oz | 8.4 g |
| Cutting diameter / DC ±0,01 mm | 0.0236" | 0.600 mm |
| Depth of cut maximum / APMX | 0.0236" | 0.600 mm |
| Neck Diameter / DN | 0.0189" | 0.480 mm |
| Head length / LH | 0.2362" | 6.000 mm |
| Alpha | 17.0000" | 431.800 mm |
| L6 | 0.4173" | 10.600 mm |
| Beta | 7.0000" | 177.800 mm |
| Protruding length / LPR | 0.4213" | 10.700 mm |
| Overall length / OAL | 1.4961" | 38.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.1181" | 3.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Coating name / Grade (Ceratizit) / COATN | DPA72S | |
| Product-Carbon-Footprint | F | |
| Machining process - Main Application | Form milling | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
