Note that this item has been discontinued and will not be re-stocked.
SCR.H-RD.10,0.35°.Z4.HA.L TI1200 HPC SOLID CARBIDE BALL NOSED CUTTER Radius accuracy: - 0,015 mm for Ø 6,0 mm / - 0,02 mm for Ø > 6,0 mm
Mat No: 5261210000, Article No: 52612100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SCR.H-RD.10,0.35°.Z4.HA.L TI1200 HPC SOLID CARBIDE BALL NOSED CUTTER 5261210000 (0656907) | |
| EDP # | 0656907 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 2.6 oz | 73.7 g |

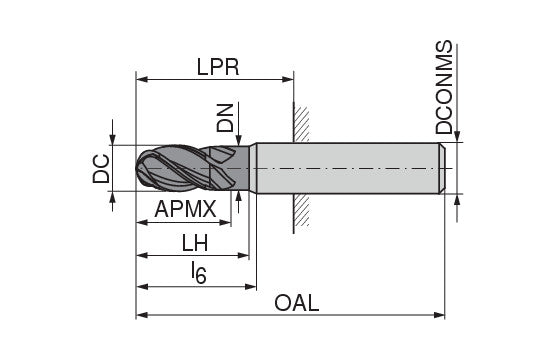

| Cutting diameter DC/d1 f8 | 0.3937 inch | 10 mm |
| Depth of cut maximum APMX/l2 | 0.8661 inch | 22 mm |
| Neck Diameter DN/d3 | 0.374 inch | 9.5 mm |
| L6 l6 | 1.1811 inch | 30 mm |
| Protruding length LPR/l5 | 1.2992 inch | 33 mm |
| Overall length OAL/l1 | 2.874 inch | 73 mm |
| Mounting spigot diameter DCONMS/d2 h5 | 0.3937 inch | 10 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
