Note that this item has been discontinued and will not be re-stocked.
SCR.H-TO.16.45°.Z4.R2,2.HA.L.IK TI1200 HFC/HPC SOLID CARB. TORUS MILLING CUTTER r 3D = programmed corner radius
Mat No: 5260916000, Article No: 52609160
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

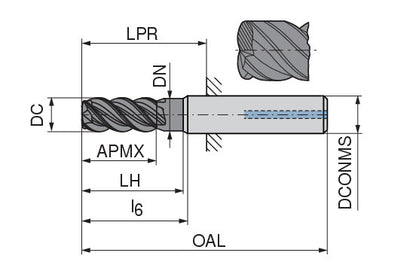

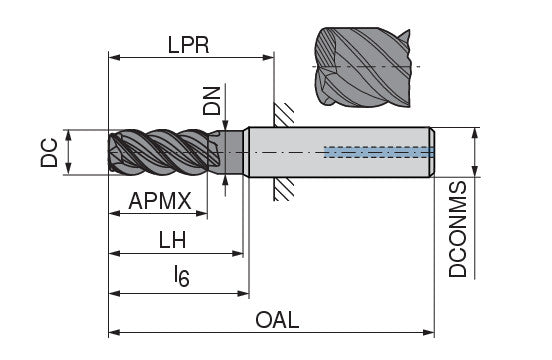

| Properties | ||
|---|---|---|
| Name | CERATIZIT SCR.H-TO.16.45°.Z4.R2,2.HA.L.IK TI1200 HFC/HPC SOLID CARB. TORUS MILLING CUTTER 5260916000 (0656999) | |
| EDP # | 0656999 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 8.2 oz | 232.3 g |
| Cutting diameter DC/d1 -0.04 | 0.6299 inch | 16 mm |
| 3D radius r3D | 0.0866 inch | 2.2 mm |
| Depth of cut maximum APMX/l2 | 1.2598 inch | 32 mm |
| Neck Diameter DN/d3 | 0.6102 inch | 15.5 mm |
| Head length LH/l3 | 1.565 inch | 39.75 mm |
| L6 l6 | 1.5748 inch | 40 mm |
| Protruding length LPR/l5 | 1.7323 inch | 44 mm |
| Overall length OAL/l1 | 3.622 inch | 92 mm |
| Mounting spigot diameter DCONMS/d2 h5 | 0.6299 inch | 16 mm |
| T max. T max. | 0.0197 inch | 0.5 mm |
| Profile radius 1 PRFRAD1/r1 | 0.0866 inch | 2.2 mm |
| Profile radius 2 PRFRAD2/r2 | 0.3071 inch | 7.8 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
