Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 52610080
Ceratizit Material Number: 5261008000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

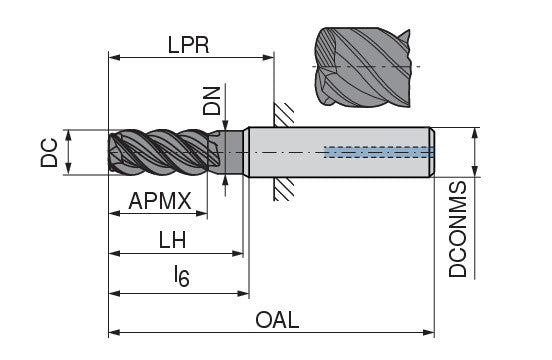

| Properties | ||
|---|---|---|
| Name | Ceratizit SCR.H-TO.8.45°.Z4.R1.0.HA.EL.IK TI1200 MonsterMill Torus Face Milling Cutter 52610080 | |
| EDP # | 0657074 | |
| Weight (1 pc.) | 2.0 oz | 44.6 g |
| Cutting diameter / DC -0.04 | 0.3150' | 8.000 mm |
| Corner radius / RE | 0.0394' | 1.000 mm |
| 3D radius | 0.0394' | 1.000 mm |
| Depth of cut maximum / APMX | 0.7480' | 19.000 mm |
| Neck Diameter / DN | 0.3031' | 7.700 mm |
| Head length / LH | 1.1752' | 29.850 mm |
| L6 | 1.1811' | 30.000 mm |
| Protruding length / LPR | 1.2598' | 32.000 mm |
| Overall length / OAL | 2.6772' | 68.000 mm |
| Mounting spigot diameter / DCONMS h5 | 0.3150' | 8.000 mm |
| T max. | 0.0118' | 0.300 mm |
| Profile radius 2 / PRFRAD2 | 0.1535' | 3.900 mm |
| Profile radius 1 / PRFRAD1 | 0.0394' | 1.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Coating name / Grade (Ceratizit) / COATN | Ti1200 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
