Description
Ceratizit Article Number: 8251632700
Ceratizit Material Number: 12616658
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 8274422769, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.

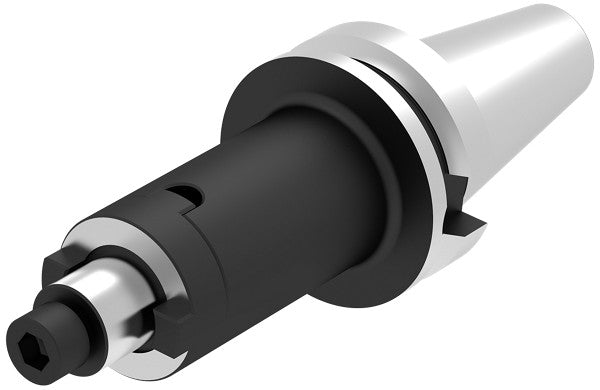

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

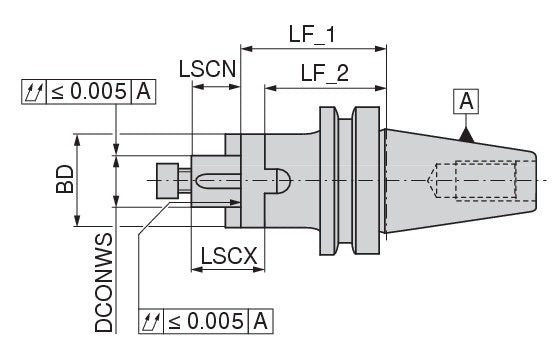

| Properties | ||
|---|---|---|
| Name | Ceratizit MAS-BT.A40.KA.27.100.F Combination Shell Mill Adapter 8251632700 | |
| EDP # | 0657877 | |
| Weight (1 pc.) | 77.0 oz | 2190 g |
| Machine interface size | BT 40 | |
| Clamping diameter (DCONWS) / DCONWS | 1.0630" | 27.000 mm |
| Functional length 1 / LF_1 | 3.9370" | 100.000 mm |
| Functional length 2 / LF_2 | 3.4646" | 88.000 mm |
| Neck diameter (BD) / BD | 1.8898" | 48.000 mm |
| Clamping length maximum machine side / LSCX | 1.2992" | 33.000 mm |
| Clamping length minimum machine side / LSCN | 0.8268" | 21.000 mm |
| Balance quality | G 2,5 nmax 25000 | |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
