Note that this item has been discontinued and will not be re-stocked.

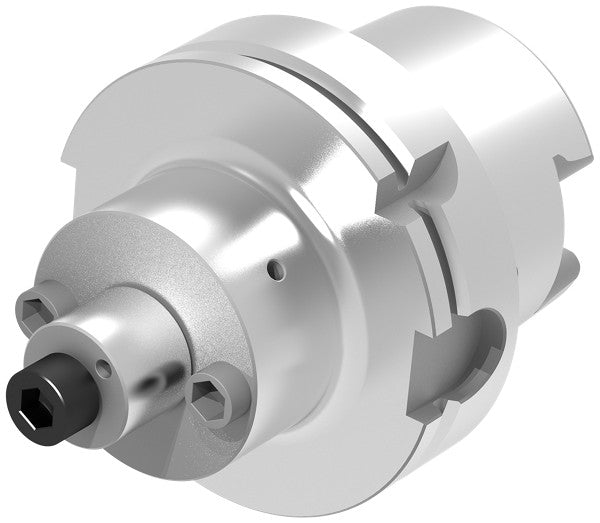

DIN69893A-AD100.QA.40.70.V SHELL MILL ADAPTER SHORT For milling cutters with transverse or longitudinal groove ISO 3937 also available with Balluff chip on request Scope of supply: Holder with fixed drive dogs, dowel spring and retaining screw
Mat No: 8475014000, Article No: 84750140
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT DIN69893A-AD100.QA.40.70.V SHELL MILL ADAPTER SHORT 8475014000 (0657972) | |
| EDP # | 0657972 | |
| Weight | 143.6 oz | 4071.3 g |
| Adapter | HSK-A 100 | |

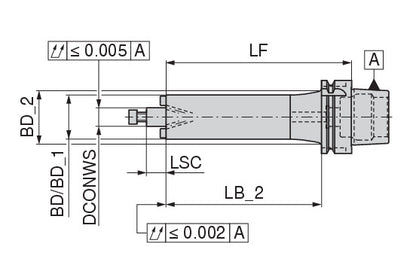

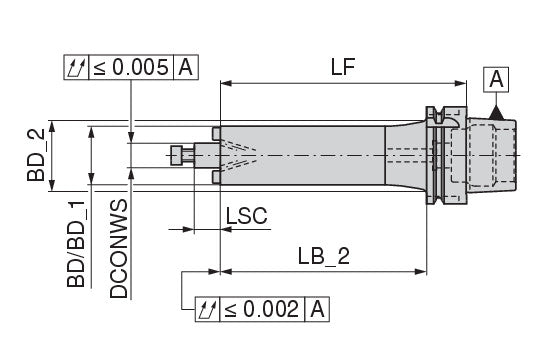

| Connection diameter workpiece side DCONWS/D1 | 1.5748 inch | 40 mm |
| Body length 2 LB_2/L2 | 1.6142 inch | 41 mm |
| Functional length LF/A | 2.7559 inch | 70 mm |
| Body diameter BD/D2 | 3.1496 inch | 80 mm |
| Clamping length machine side LSC/L1 | 1.063 inch | 27 mm |
