Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 62307016
Ceratizit Material Number: 6230701600
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.

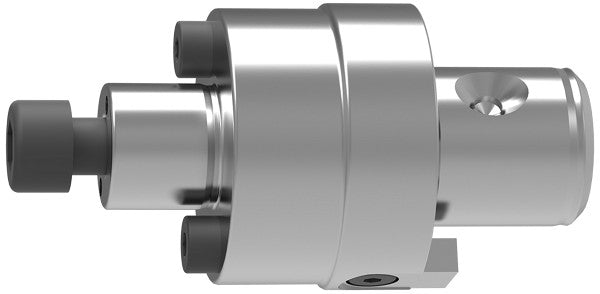

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ST.QA.MOD.STM22.16.30.40.IK SpinTools - Shell Mill Adapter 62307016 | |
| EDP # | 0657974 | |
| Weight (1 pc.) | 14.0 oz | 389 g |
| Clamping diameter (DCONWS) / DCONWS | 0.6299' | 16.000 mm |
| Body length 2 / LB_2 | 0.6732' | 17.100 mm |
| Functional length / LF | 1.1811' | 30.000 mm |
| Neck diameter (BD) / BD | 1.4961' | 38.000 mm |
| Clamping length machine side / LSC | 0.6693' | 17.000 mm |
| nominal size / SZID | STM 22 | |
| Mounting spigot diameter / DCONMS | 0.8661' | 22.000 mm |
| Drive size / DRVS | 0.2362' | 6.000 mm |
| Flange diameter / DF | 1.5748' | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
