Description
Note that this item has been discontinued and will not be re-stocked.
ISO26623-1.PSC50.QA.16.28.V SHELL MILL ADAPTER for cutters with longitudinal or transverse groove also available with Balluff chip on request Scope of supply: Holder with clamping screw and drive key
Mat No: 8412250100, Article No: 84122501
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

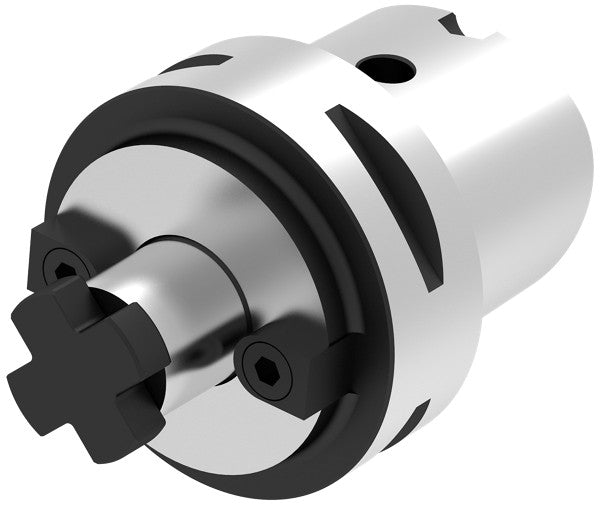

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

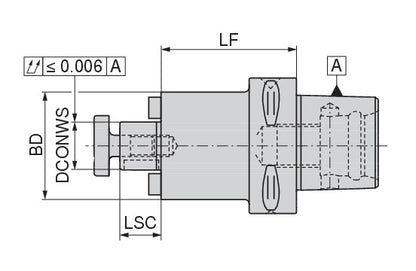

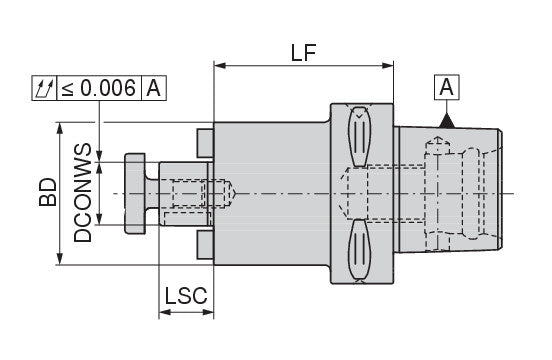

| Properties | ||
|---|---|---|
| Name | CERATIZIT ISO26623-1.PSC50.QA.16.28.V SHELL MILL ADAPTER 8412250100 (0658040) | |
| EDP # | 0658040 | |
| Weight | 21.5 oz | 610.6 g |
| Adapter | PSC 50 | |
| Connection diameter workpiece side DCONWS/D1 | 0.6299 inch | 16 mm |
| Functional length LF/A | 1.1024 inch | 28 mm |
| Body diameter BD/D2 | 1.5748 inch | 40 mm |
| Clamping length machine side LSC/L1 | 0.6693 inch | 17 mm |
| Flange diameter DF/D5 | 1.9685 inch | 50 mm |
| Mounting spigot diameter DCONMS/D6 | 1.378 inch | 35 mm |
Application & Properties:
