Description
Note that this item has been discontinued and will not be re-stocked.
ISO26623-1.PSC80.WE.50.120.V.IK CYLINDRICAL SHANK ADAPTER WELDON For shanks according to DIN 6535 HB / 1835 B with lateral clamping flat also available with Balluff chip on request
Mat No: 8410085000, Article No: 84100850
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

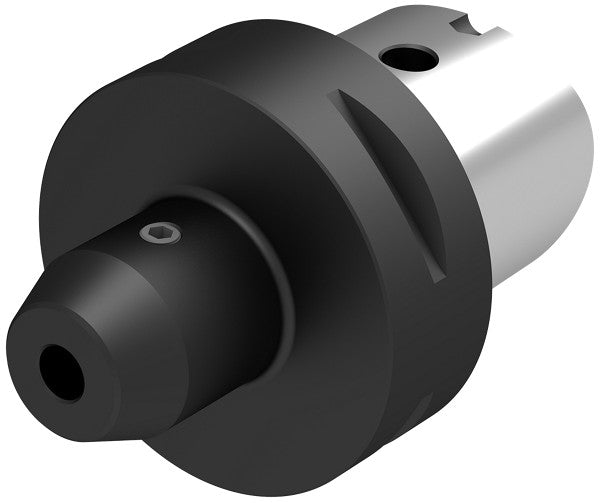

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

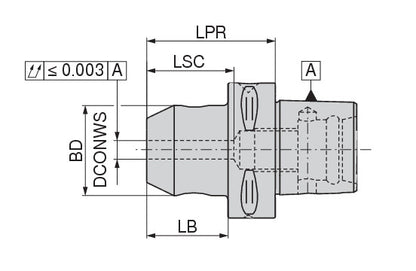

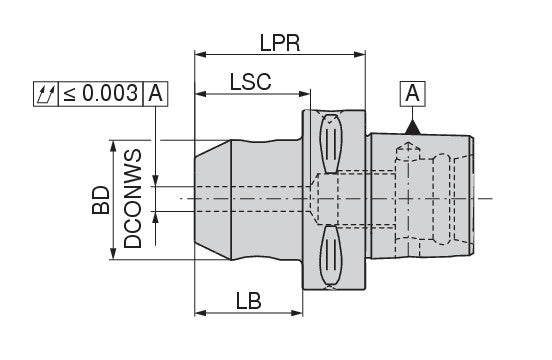

| Properties | ||
|---|---|---|
| Name | CERATIZIT ISO26623-1.PSC80.WE.50.120.V.IK CYLINDRICAL SHANK ADAPTER WELDON 8410085000 (0658507) | |
| EDP # | 0658507 | |
| Weight | 172.0 oz | 4875.7 g |
| Adapter | PSC 80 | |
| Connection diameter workpiece side DCONWS/d1 | 1.9685 inch | 50 mm |
| Protruding length LPR/A | 4.7244 inch | 120 mm |
| Body diameter BD/D1 | 3.937 inch | 100 mm |
| Body taper end diameter BTED/D1 | 3.1496 inch | 80 mm |
| Body length LB/L1 | 3.5433 inch | 90 mm |
| Clamping length machine side LSC/l1 | 3.2677 inch | 83 mm |
| Body half taper angle BHTA/a° | 45 ° | |
| Mounting spigot diameter DCONMS/D6 | 2.1654 inch | 55 mm |
| Flange diameter DF/D5 | 3.1496 inch | 80 mm |
Application & Properties:
