Description
Note that this item has been discontinued and will not be re-stocked.

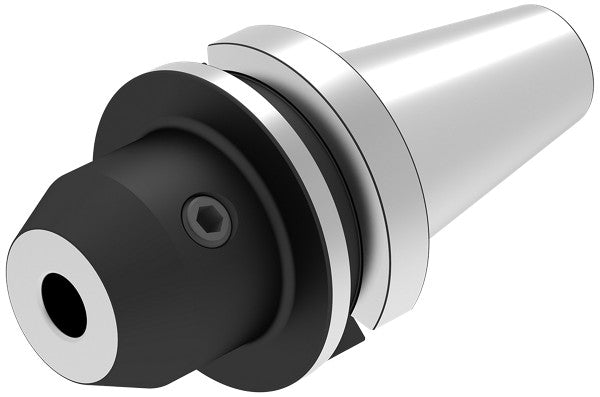

MAS-BT-FC-AD30.WE16.63.F CYLINDRICAL SHANK ADAPTER WELDON with face contact for shanks according to DIN 6535 / 1835 B with lateral clamping flat also available with Balluff chip on request
Mat No: 8455201600, Article No: 84552016
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT MAS-BT-FC-AD30.WE16.63.F CYLINDRICAL SHANK ADAPTER WELDON 8455201600 (0658508) | |
| EDP # | 0658508 | |
| Weight | 30.4 oz | 863.0 g |
| Adapter | BT-FC 30 | |

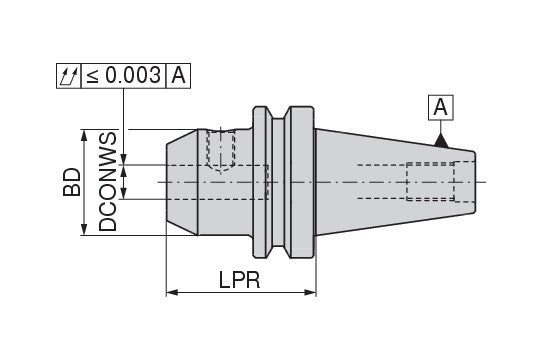

| Connection diameter workpiece side DCONWS/d1 H4 | 0.6299 inch | 16 mm |
| Protruding length LPR/A | 2.4803 inch | 63 mm |
| Body diameter BD/D1 | 1.8898 inch | 48 mm |
| Body taper end diameter BTED/D1 | 1.4173 inch | 36 mm |
| Body half taper angle BHTA/a° | 25 ° | |
