Zedaro GRYSTRIPR-6.000C120.-0658807-G40CE1 (0658807)
Zedaro GRYSTRIPR-6.000C120.-0658807-G40CE1 (0658807)
Couldn't load pickup availability
Zedaro UID: 0658807
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

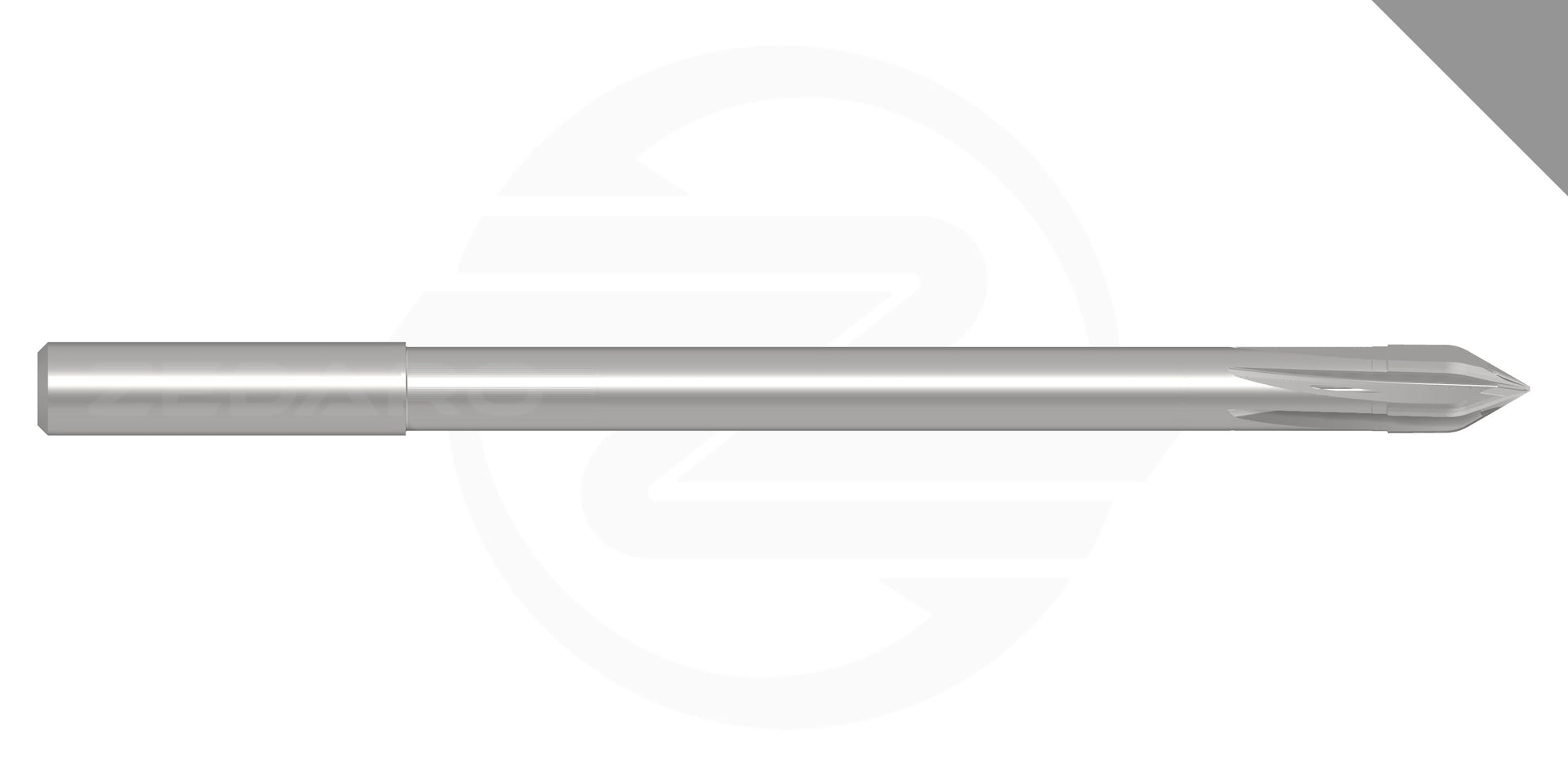

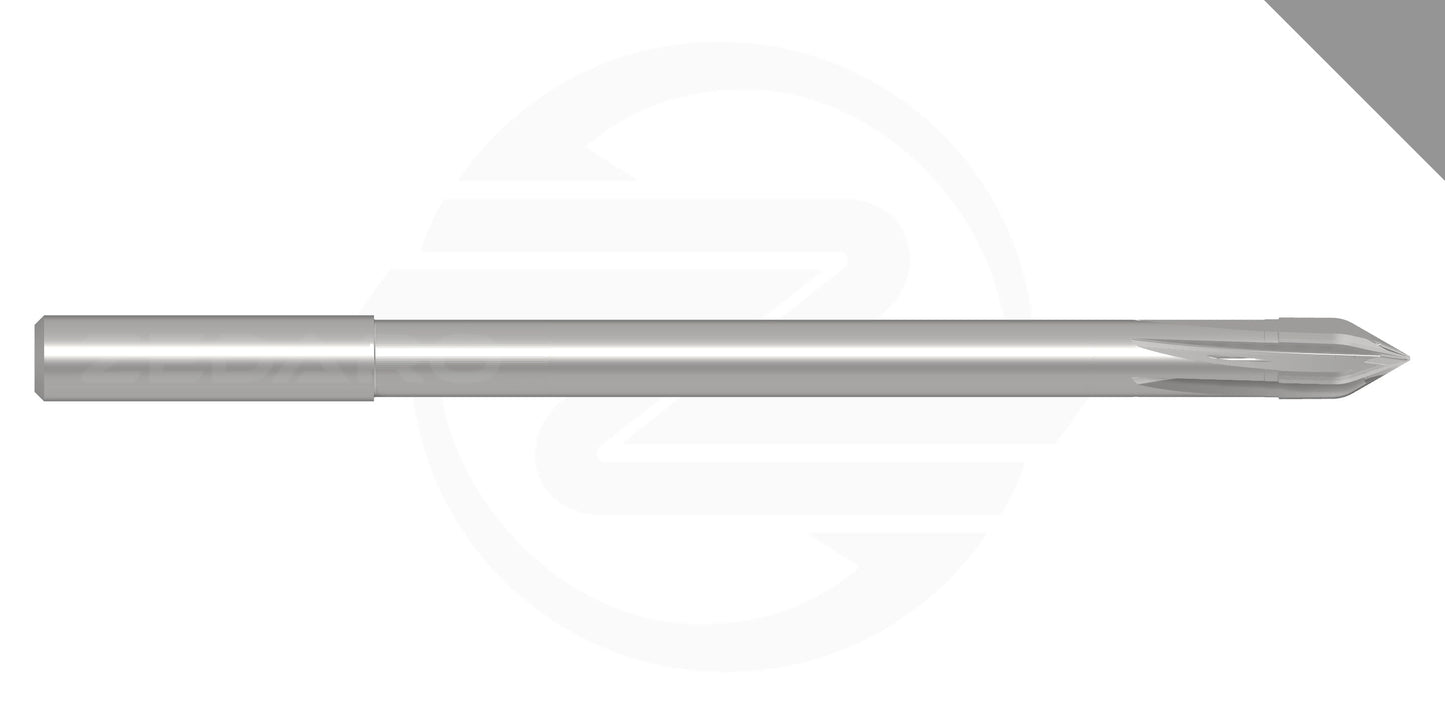

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRYSTRIPR-6.000C120.-0658807-G40CE1 | |
| EDP # | 0658807 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 2.0 oz | 50.0 g |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Total Tip Angle | 4.7244" | 120.000 mm |
| Application | General Milling <20k RPM (Striper) | |
| Form | Chamfer | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.4331" | 11.000 mm |
| Overall Length | 4.0000" | 101.600 mm |
| Reach | 3.0315" | 77.000 mm |
| Minimum Extension | 0.5512" | 14.000 mm |
| Maximum Extension | 3.5000" | 88.900 mm |
Product Features:
- The 'Grey' line of tooling is designed specifically for cutting hardened/tool steels.
- The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
- 'C' form tools are for chamfering and deburring, available in a large array of tip angles.
- This is a custom design which does not follow standard proportions.
