Description
ISO: HSK63A-WBH40-110 ANSI: HSK63A-WBH40-110 INDEXABLE INSERT ADAPTER
Mat No: 12113661, Article No: 10842340
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

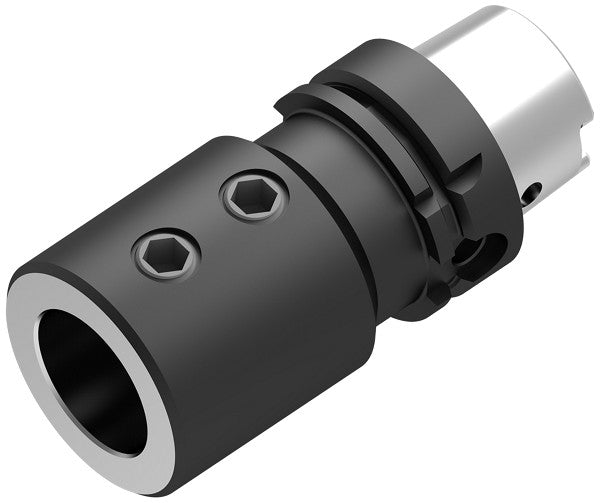

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ISO: HSK63A-WBH40-110 ANSI: HSK63A-WBH40-110 INDEXABLE INSERT ADAPTER 12113661 (0658969) | |
| EDP # | 0658969 | |
| Weight | 72.3 oz | 2050.0 g |
| Adapter | HSK-A 63 | |

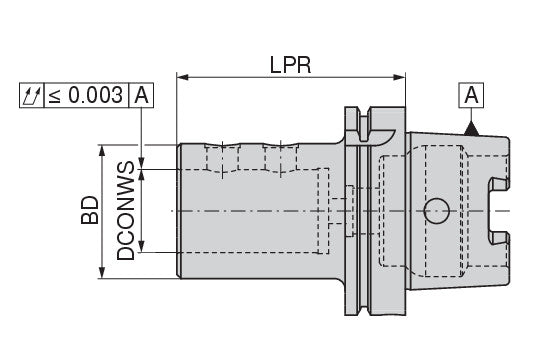

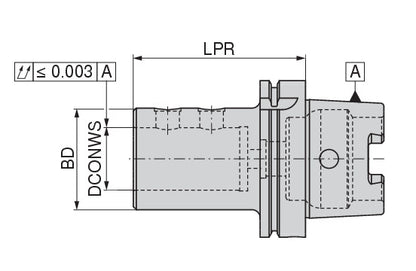

| Connection diameter workpiece side DCONWS/d1 | 1.5748 inch | 40 mm |
| Protruding length LPR/A | 4.3307 inch | 110 mm |
| Body diameter BD/D1 | 2.5591 inch | 65 mm |
| Overall length OAL/L3 | 5.5906 inch | 142 mm |
Application & Properties:
