Zedaro GRNGRAZER-10.00P8.60-120.OST126.-N60CG1 (0659466)
Zedaro GRNGRAZER-10.00P8.60-120.OST126.-N60CG1 (0659466)
Couldn't load pickup availability
Zedaro UID: 0659466
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

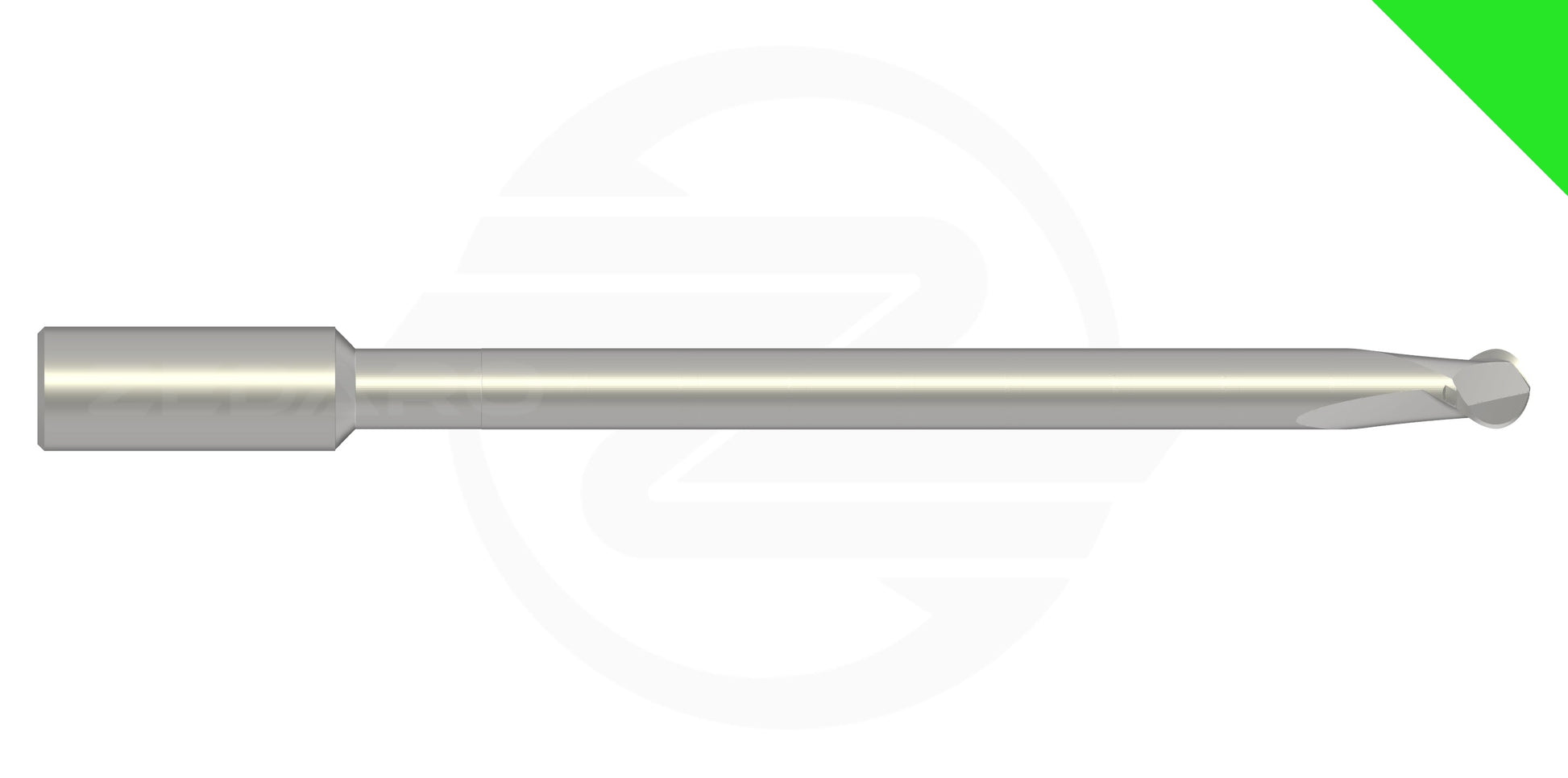

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNGRAZER-10.00P8.60-120.OST126.-N60CG1 | |
| EDP # | 0659466 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 11.0 oz | 301 g |
| Cutting Diameter | 0.3937" | 10.000 mm |
| Neck Diameter | 0.3386" | 8.600 mm |
| Application | Finish 3D Milling <20k RPM (Grazer) | |
| Form | Spherical / Porting | |
| Shank Diameter (h5) | 0.5000" | 12.700 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.3386" | 8.600 mm |
| Overall Length | 6.0000" | 152.400 mm |
| Reach | 4.7244" | 120.000 mm |
| Minimum Extension | 4.9606" | 126.000 mm |
| Maximum Extension | 5.0000" | 127.000 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.
- 'P' form tools are spherical and are supported by a neck which is smaller than the maximum cutting diameter. These are typically used to generate geometry in ports or other difficult to reach features/faces.
- The code 'OST' refers to the bird species 'Ostrich'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
