Description
TCR.H-SA.8,0.40°.Z4.R2,0.HB.L DPX52S HPC CARBIDE END MILL WITH CORNER RADIUS PRFRAD3 = 1 mm
Mat No: 5250808020, Article No: 5250808020
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

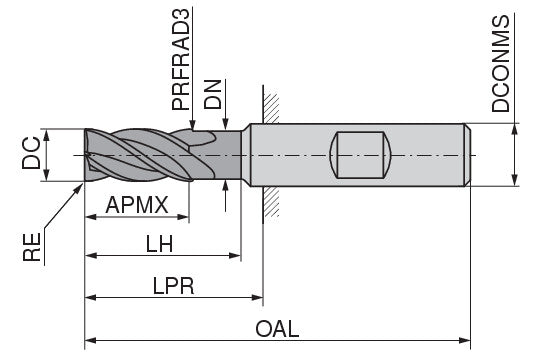

Properties | ||
---|---|---|
Name | CERATIZIT TCR.H-SA.8,0.40°.Z4.R2,0.HB.L DPX52S HPC CARBIDE END MILL WITH CORNER RADIUS 5250808020 (0659745) | |
EDP # | 0659745 | |
Workpiece Material(s) | All Materials (White) | |
Weight | 1.5 oz | 42.0 g |
Cutting diameter DC/d1 e8 | 0.315 inch | 8 mm |
Corner radius RE/r | 0.0787 inch | 2 mm |
Depth of cut maximum APMX/l2 | 0.8268 inch | 21 mm |
Protruding length LPR/l5 | 1.063 inch | 27 mm |
Overall length OAL/l1 | 2.4803 inch | 63 mm |
Mounting spigot diameter DCONMS/d2 h5 | 0.315 inch | 8 mm |
Application & Properties:
Suitable Materials:
