Zedaro GRNEDGERR-9.525C90.0-0659905-J20AB1 (0659905)
Zedaro GRNEDGERR-9.525C90.0-0659905-J20AB1 (0659905)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Shipping calculated at checkout.
Zedaro UID: 0659905
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

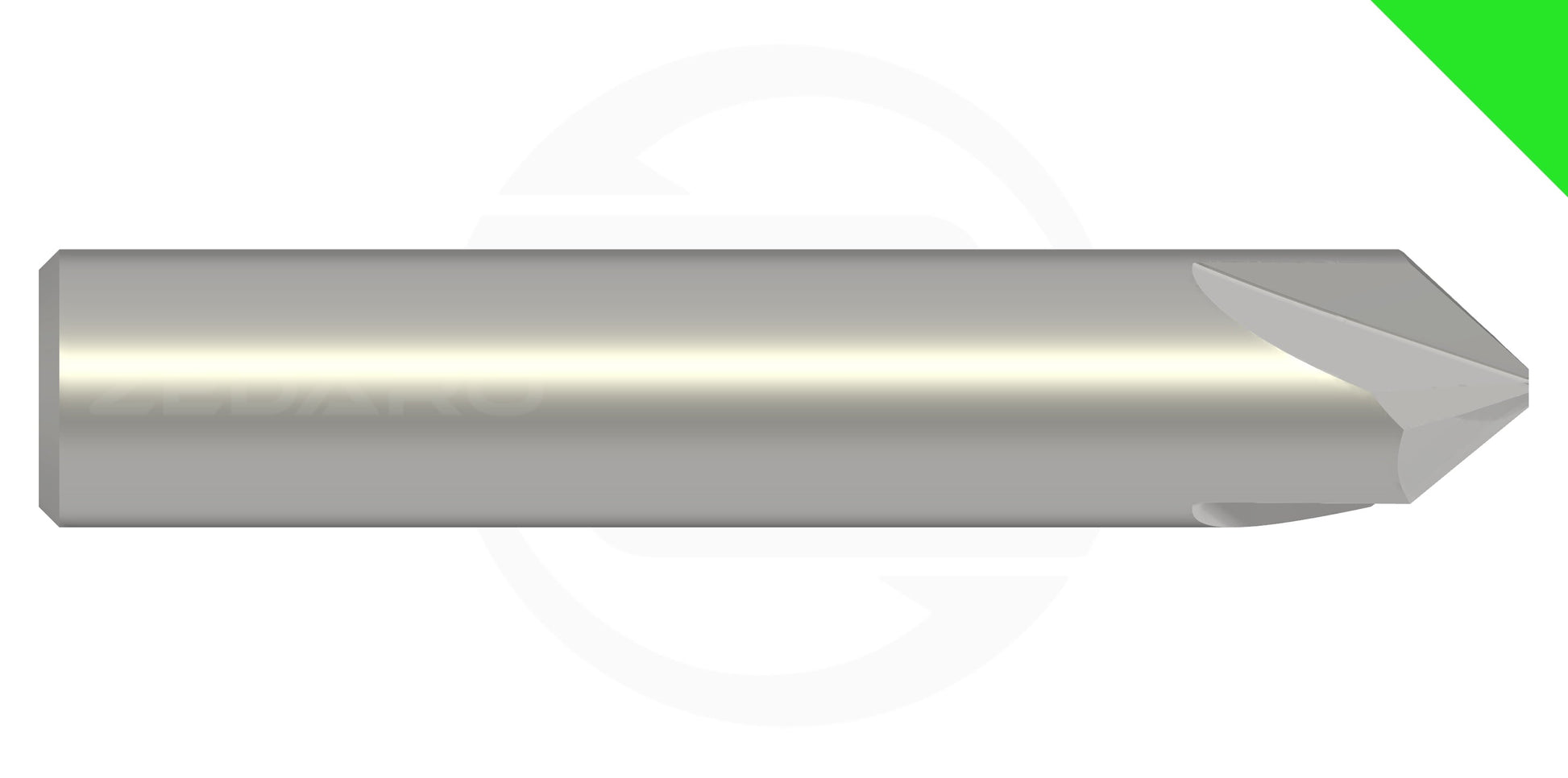

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNEDGERR-9.525C90.0-0659905-J20AB1 | |
| EDP # | 0659905 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 2.0 oz | 56.0 g |
| Cutting Diameter | 0.3750" | 9.525 mm |
| Total Tip Angle | 3.5433" | 90.000 mm |
| Application | Finish Chamfer/Deburr (Edger) | |
| Form | Chamfer | |
| Shank Diameter (h6) | 0.3750" | 9.520 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.1772" | 4.500 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | (No flank reach limit) | |
| Minimum Extension | 0.1969" | 5.000 mm |
| Maximum Extension | 1.2480" | 31.700 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Edger' line is for chamfering and deburring.
- 'C' form tools are for chamfering and deburring, available in a large array of tip angles.
- The code 'AUF' refers to the bird species 'Atlantic Puffin'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
