Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 8090812900
Ceratizit Material Number: 8090812900
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.

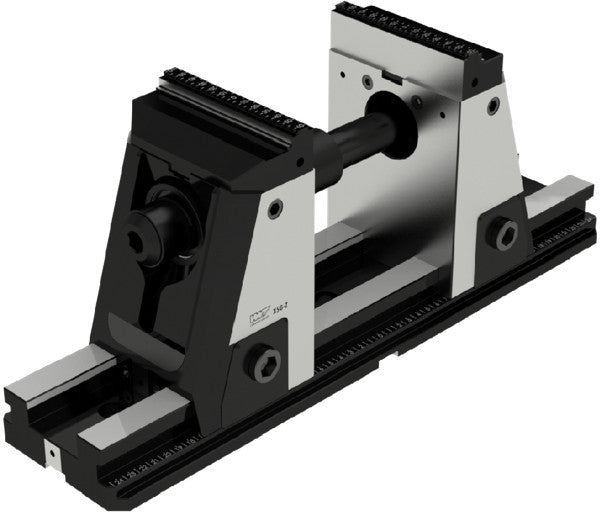

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit X5G-Z.MS.125.800 Mechanical 5-axis Vice With Movable Fixed jaw, 181 Mm Height 8090812900 | |
| EDP # | 0660630 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

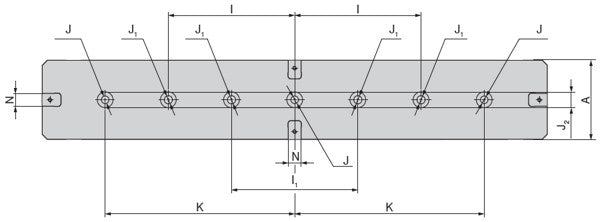

| A | 4.9213' | 125.000 mm |
| G | 31.4961' | 800.000 mm |
| B ±0,015 | 0.1575' - 23.7795' | 4.000 - 604.000 mm |
| B1 | 0.4724' - 24.0551' | 12.000 - 611.000 mm |
| B2 | 3.1496' - 26.7717' | 80.000 - 680.000 mm |
| B3 | 3.4646' - 27.0472' | 88.000 - 687.000 mm |
| D | 1.2992' | 33.000 mm |
| K ±0,02 | 11.8110' | 300.000 mm |
| E ±0,01 | 8.4252' | 214.000 mm |
| Maximum clamping force / MXC | 40 kN | |
| Torque maximum / TQX | 120 Nm | |
| Drive size / DRVS | 0.5512' | 14.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
