Description
Ceratizit Article Number: 6281503990
Ceratizit Material Number: 12545846
Ceratizit Komet Number (Unpacked): M03 00515
Ceratizit Komet Number (Packed): M0300515
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

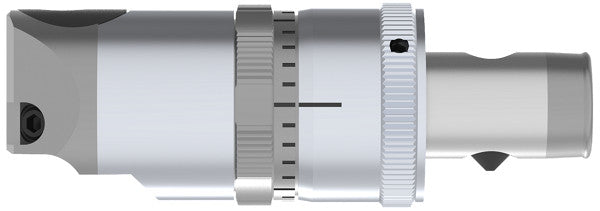

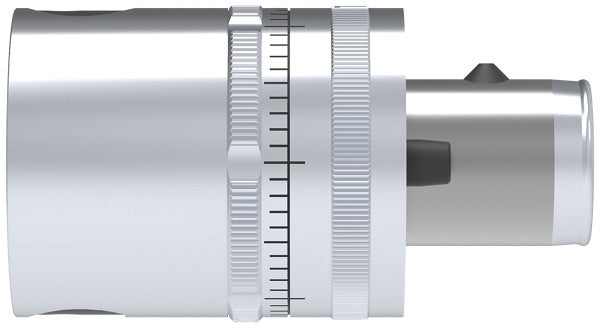

| Name | Ceratizit MICRO-ADJ. BORING HEAD ABS25 / Ø29-Ø39MM KOMET MicroKom M03Speed Precision Adjustment Head 6281503990 | |
| EDP # | 0660818 | |
| Weight (1 pc.) | 7.0 oz | 186 g |

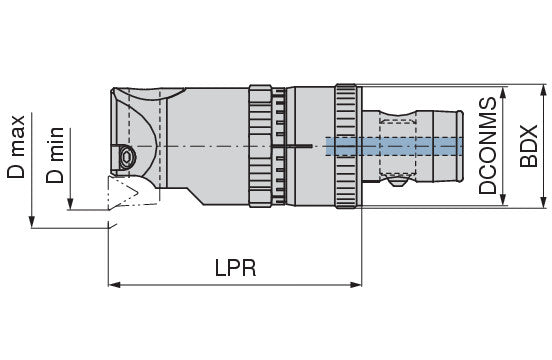

| Dmin - Dmax | 0.3543" - 1.5354" | 9.000 - 39.000 mm |
| Machine interface size | ABS 25 | |
| Mounting spigot diameter / DCONMS | 0.5118" | 13.000 mm |
| Body diameter maximum / BDX | 1.0236" | 26.000 mm |
| Flange diameter / DF | 0.9843" | 25.000 mm |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Body length / LB | 1.9488" | 49.500 mm |
| 62 864 03900 | ||
| Adjustment range radial - range / ADJRGR | 0.0157" | 0.400 mm |
| nominal size / SZID | ABS 25 | |
| Shank length / LS | 0.7874" | 20.000 mm |
| Functional length / LF | 1.5551" | 39.500 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
