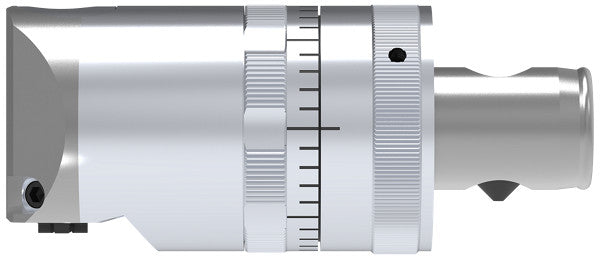

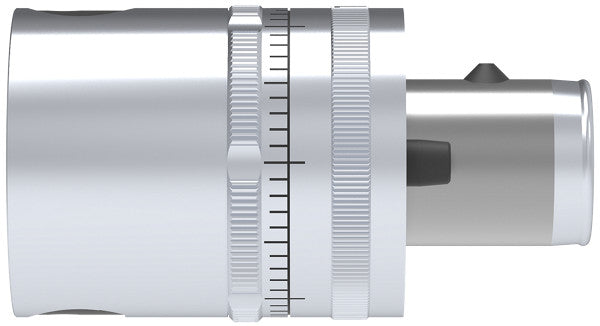

Ceratizit MICRO-ADJ. BORING HEAD ABS40 / Ø49-Ø63MM SpinTools Precision Adjustment M03 Speed 6281506388 (0660820)
Ceratizit MICRO-ADJ. BORING HEAD ABS40 / Ø49-Ø63MM SpinTools Precision Adjustment M03 Speed 6281506388 (0660820)
Couldn't load pickup availability
Ceratizit Article Number: 6281506388
Ceratizit Material Number: 12545848
Ceratizit Komet Number (Unpacked): M03 01535
Ceratizit Komet Number (Packed): M0301535
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MICRO-ADJ. BORING HEAD ABS40 / Ø49-Ø63MM SpinTools Precision Adjustment M03 Speed 6281506388 | |
| EDP # | 0660820 | |
| Weight (1 pc.) | 23.0 oz | 658 g |
| Productsystem | M03 Speed | |

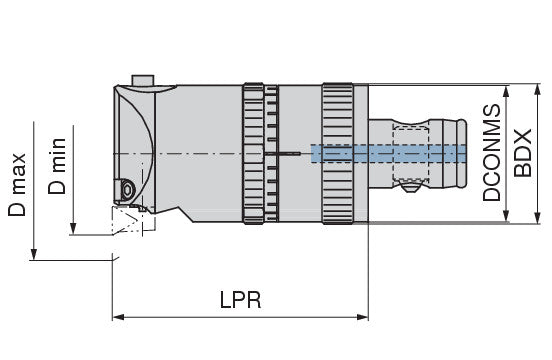

| Dmin - Dmax | 49 - 63 | |
| Machine interface size | ABS 40 | |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Body diameter maximum / BDX | 1.6142" | 41.000 mm |
| Flange diameter / DF | 1.5748" | 40.000 mm |
| Protruding length / LPR | 2.7559" | 70.000 mm |
| Body length / LB | 2.7165" | 69.000 mm |
| 62 864 08000 | ||
| Adjustment range radial - range / ADJRGR | 0.4 ø | |
| nominal size / SZID | ABS 40 | |
| Shank length / LS | 1.0236" | 26.000 mm |
| Functional length / LF | 2.3622" | 60.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
