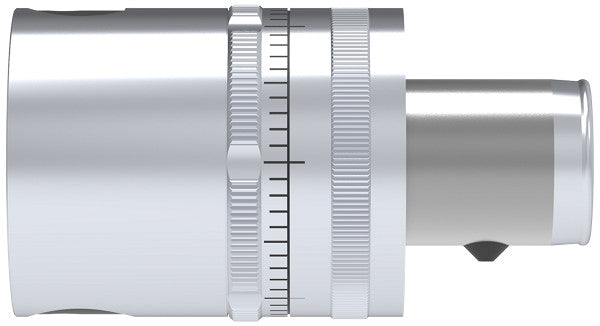

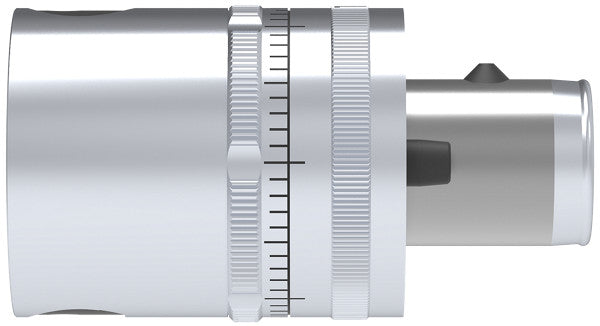

Ceratizit FINE BORING HEAD ABS32 / Ø38 - Ø63 mm SpinTools Precision Adjustment M03 Speed 6281506389 (0660842)
Ceratizit FINE BORING HEAD ABS32 / Ø38 - Ø63 mm SpinTools Precision Adjustment M03 Speed 6281506389 (0660842)
Couldn't load pickup availability
Ceratizit Article Number: 6281506389
Ceratizit Material Number: 12545903
Ceratizit Komet Number (Unpacked): M03 20170
Ceratizit Komet Number (Packed): M0320170
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit FINE BORING HEAD ABS32 / Ø38 - Ø63 mm SpinTools Precision Adjustment M03 Speed 6281506389 | |
| EDP # | 0660842 | |
| Weight (1 pc.) | 17.0 oz | 468 g |
| Productsystem | M03 Speed | |

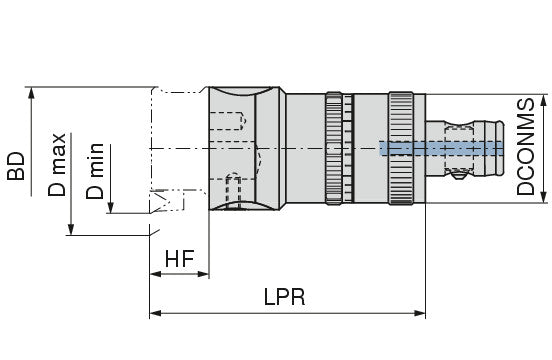

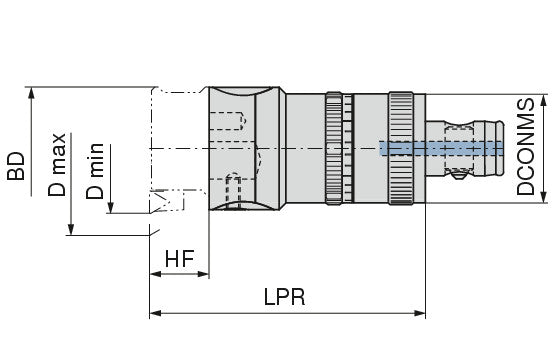

| Dmin - Dmax | 38 - 63 | |
| Machine interface size | ABS 32 | |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Flange diameter / DF | 1.2598" | 32.000 mm |
| Protruding length / LPR | 3.1890" | 81.000 mm |
| Body length / LB | 2.5000" | 63.500 mm |
| Adjustment range radial - range / ADJRGR | 0.4 ø | |
| nominal size / SZID | ABS 32 | |
| Shank length / LS | 0.9055" | 23.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
