Description
Ceratizit Article Number: 6288209100
Ceratizit Material Number: 12540433
Ceratizit Komet Number (Unpacked): G03 50540
Ceratizit Komet Number (Packed): G0350540
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

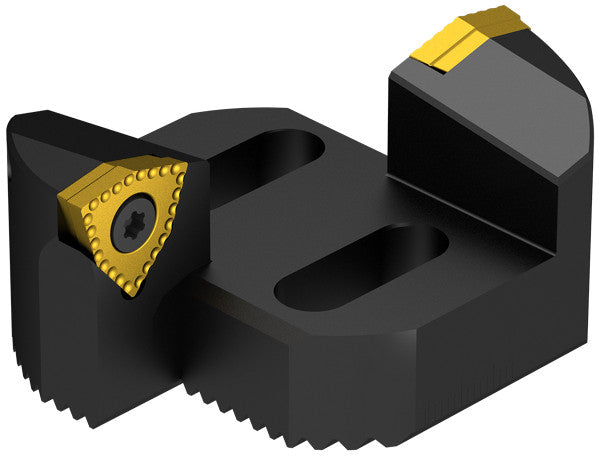

| Name | Ceratizit Pair Of Insert Holder VD80/64-91; KOMET TwinKom Blade Carriers 80° 6288209100 | |
| EDP # | 0660861 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 268 g |
| Insert | WOEX 0804.. | |
| Dmin - Dmax | 0.1575" - 3.5827" | 4.000 - 91.000 mm |
| Cutting diameter maximum / DCX | 3.5827" | 91.000 mm |
| Cutting diameter minimum / DCN | 2.5197" | 64.000 mm |
| torque moment | 6.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
