Description
Ceratizit Article Number: 6787109800
Ceratizit Material Number: 13026668
Ceratizit Komet Number (Unpacked): G03 60440
Ceratizit Komet Number (Packed): G0360440
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

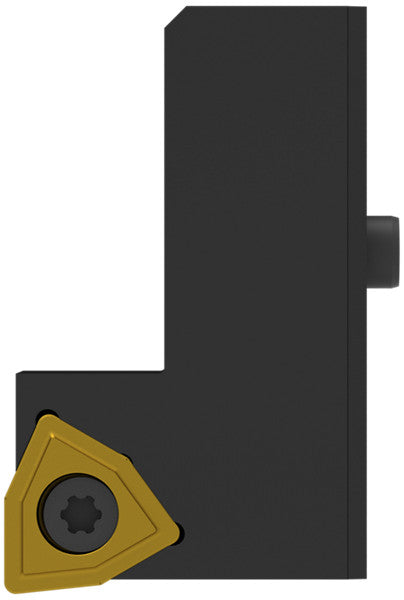

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CROSS-SLIDE ASSY G04 90 64, Inch KOMET TwinKom Tool Holder 90° 6787109800 | |
| EDP # | 0660868 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 276 g |
| Insert | WO.X 0804.. | |
| Dmin - Dmax | 0.1575" - 3.8583" | 4.000 - 98.000 mm |
| Cutting diameter maximum / DCX | 3.8530" | 97.866 mm |
| Cutting diameter minimum / DCN | 2.5200" | 64.008 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
