Description
Ceratizit Article Number: 6288120400
Ceratizit Material Number: 12540443
Ceratizit Komet Number (Unpacked): G03 60570
Ceratizit Komet Number (Packed): G0360570
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

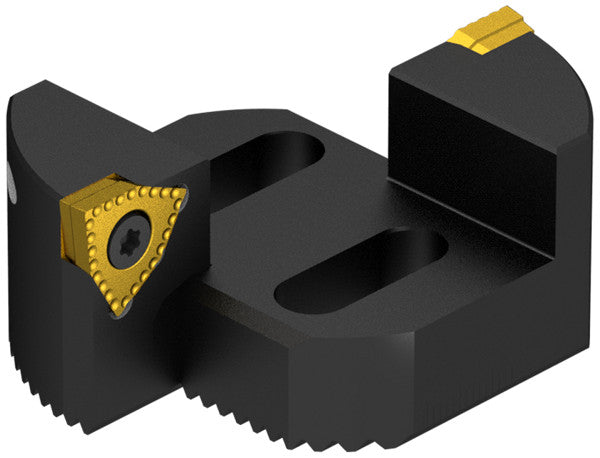

| Name | Ceratizit Pair Of Insert Holder VD90/139-204; KOMET TwinKom Blade Carriers 90° 6288120400 | |
| EDP # | 0660878 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 81.0 oz | 2294 g |
| Insert | WOEX 1206.. | |
| Dmin - Dmax | 1.5354" - 8.0315" | 39.000 - 204.000 mm |
| Cutting diameter maximum / DCX | 8.0315" | 204.000 mm |
| Cutting diameter minimum / DCN | 5.4724" | 139.000 mm |
| torque moment | 6.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
