Description
Ceratizit Article Number: 6287605300
Ceratizit Material Number: 12540469
Ceratizit Komet Number (Unpacked): G03 80050
Ceratizit Komet Number (Packed): G0380050
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

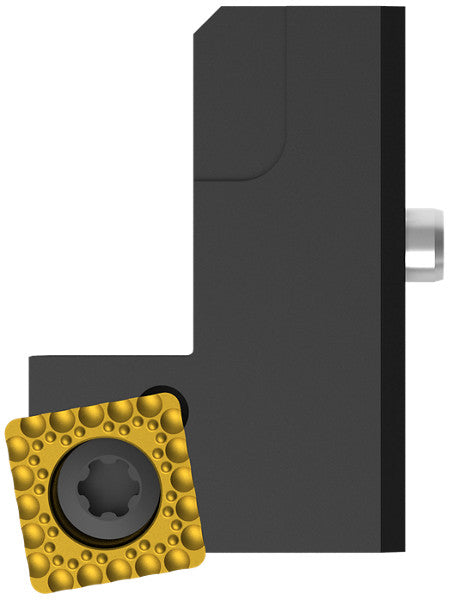

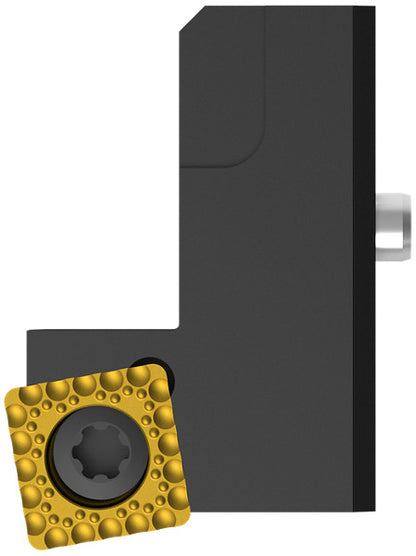

| Name | Ceratizit CLAMPING HOLDER VD Ø39-53MM 80° W8332 KOMET TwinKom Tool Holder 6287605300 | |
| EDP # | 0660910 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 48.0 g |
| Insert | SOEX 090408 | |
| Dmin - Dmax | 0.3543" - 2.0866" | 9.000 - 53.000 mm |
| Cutting diameter maximum / DCX | 2.0866" | 53.000 mm |
| Cutting diameter minimum / DCN | 1.5354" | 39.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
