Description
Ceratizit Article Number: 6288104190
Ceratizit Material Number: 12540478
Ceratizit Komet Number (Unpacked): G04 00500
Ceratizit Komet Number (Packed): G0400500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

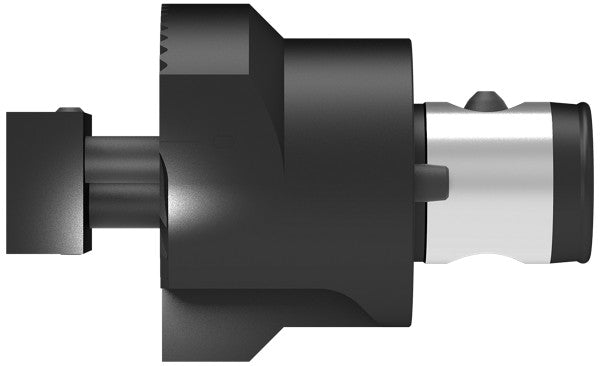

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

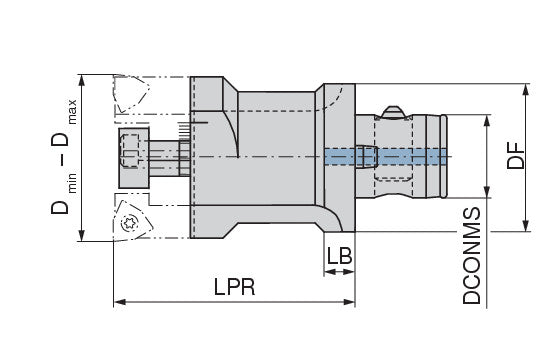

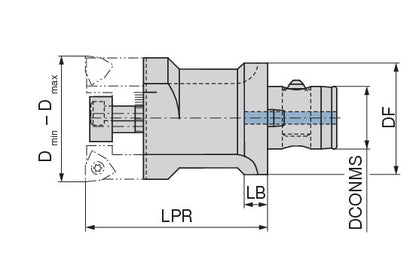

| Properties | ||
|---|---|---|
| Name | Ceratizit TWIN CUTTER BODY DIA. 30-41MM KOMET TwinKom Base Body 6288104190 | |
| EDP # | 0660926 | |
| Weight (1 pc.) | 7.0 oz | 205 g |
| Dmin - Dmax | 0.0000" - 1.6142" | 0.000 - 41.000 mm |
| Machine interface size | ABS 25 | |
| Mounting spigot diameter / DCONMS | 0.5118" | 13.000 mm |
| Flange diameter / DF | 0.9843" | 25.000 mm |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Shank length / LS | 0.7874" | 20.000 mm |
| Neck diameter (BD) / BD | 1.1024" | 28.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
