Ceratizit TOEX06T103FN-PKD5510 CoreLine PDC indexable Insert 6263220509 (0661036)
Ceratizit TOEX06T103FN-PKD5510 CoreLine PDC indexable Insert 6263220509 (0661036)
Couldn't load pickup availability
Ceratizit Article Number: 6263220509
Ceratizit Material Number: 12564378
Ceratizit Komet Number (Unpacked): W30 04990.035510
Ceratizit Komet Number (Packed): W3004990035510
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOEX06T103FN-PKD5510 CoreLine PDC indexable Insert 6263220509 | |
| EDP # | 0661036 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

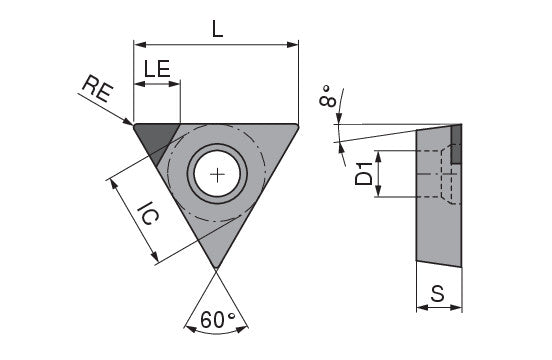

| designation | 06T103FN | |
| Corner radius / RE | 0.0118" | 0.300 mm |
| Cutting edge length / L | 0.2614" | 6.640 mm |
| Insert thickness / S | 0.0709" | 1.800 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| Cutting edge effective length / LE | 0.0709" | 1.800 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | TOEX 06T103FN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPU20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
