Description
Ceratizit Article Number: 6263200109
Ceratizit Material Number: 12548656
Ceratizit Komet Number (Unpacked): W30 04990.0357
Ceratizit Komet Number (Packed): W30049900357
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOEX 06T103TN-010D_A2 CTBS12U 6263200109 | |
| EDP # | 0661037 | |
| Weight (1 pc.) | 0.1 oz | 3.9 g |

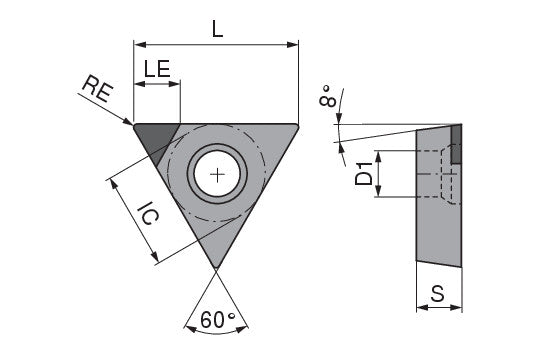

| designation | 06T103TN | |
| Corner radius / RE | 0.0118" | 0.300 mm |
| Cutting edge length / L | 0.2614" | 6.640 mm |
| Insert thickness / S | 0.0709" | 1.800 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| support chamfer angle / GB | 20 ° | |
| Cutting edge effective length / LE | 0.0709" | 1.800 mm |
| Face land width / BN | 0.0039" | 0.100 mm |
| Insert index count / NOI | 1 | |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBS12U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
