Ceratizit TOHX 090202EL-G06 BK7615 CoreLine HM indexable Insert 6260282800 (0661044)
Ceratizit TOHX 090202EL-G06 BK7615 CoreLine HM indexable Insert 6260282800 (0661044)
Couldn't load pickup availability
Ceratizit Article Number: 6260282800
Ceratizit Material Number: 12548663
Ceratizit Komet Number (Unpacked): W30 14060.027615
Ceratizit Komet Number (Packed): W3014060027615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

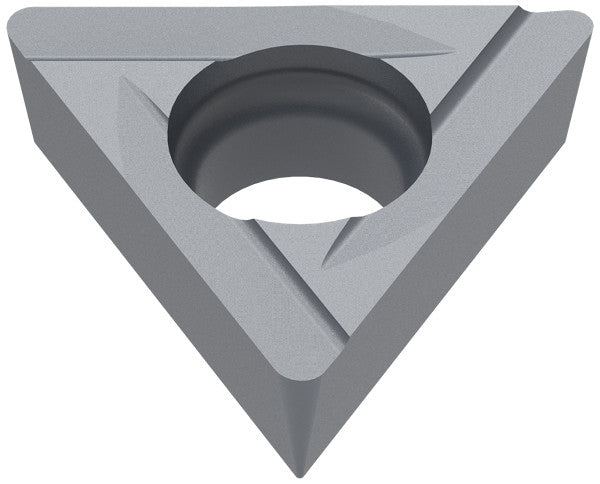

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

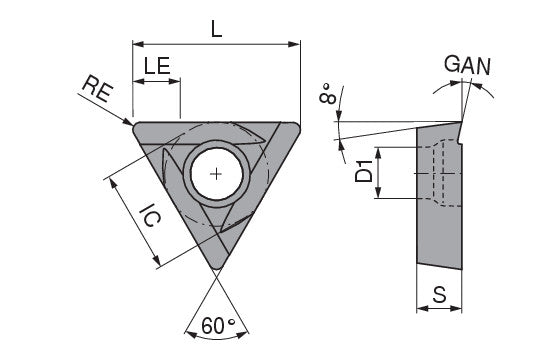

| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 090202EL-G06 BK7615 CoreLine HM indexable Insert 6260282800 | |
| EDP # | 0661044 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| designation | 090202EL | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3701" | 9.400 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOHX 090202EL | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
