Ceratizit TOHX 090208EL-G06 BK6110 CoreLine HM indexable Insert 6260244000 (0661055)
Ceratizit TOHX 090208EL-G06 BK6110 CoreLine HM indexable Insert 6260244000 (0661055)
Couldn't load pickup availability
Ceratizit Article Number: 6260244000
Ceratizit Material Number: 12548673
Ceratizit Komet Number (Unpacked): W30 14060.086110
Ceratizit Komet Number (Packed): W3014060086110
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

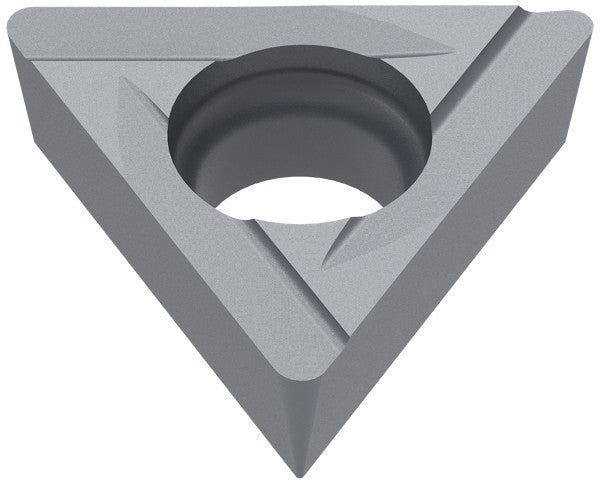

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 090208EL-G06 BK6110 CoreLine HM indexable Insert 6260244000 | |
| EDP # | 0661055 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |

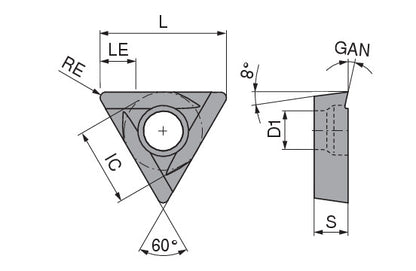

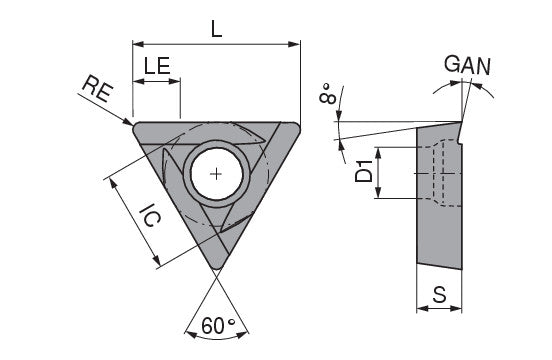

| designation | 090208EL | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3354" | 8.520 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOHX 090208EL | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | BK6110 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
