Description
Ceratizit Article Number: 6262522802
Ceratizit Material Number: 12548723
Ceratizit Komet Number (Unpacked): W30 14120.326440
Ceratizit Komet Number (Packed): W3014120326440
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

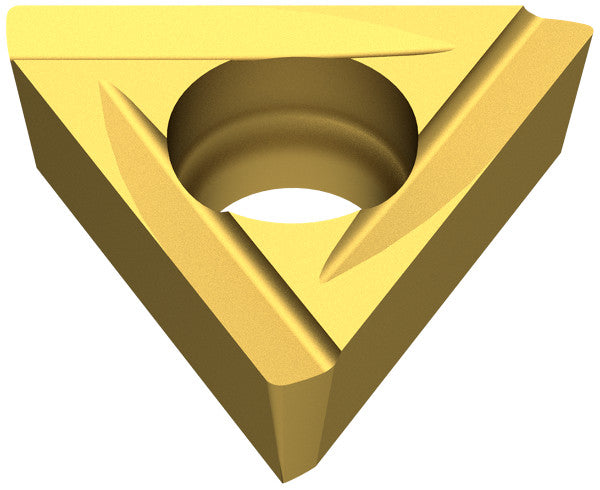

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 090202EL-US12 BK6440 6262522802 | |
| EDP # | 0661094 | |
| Weight (1 pc.) | 0.03 oz | 0.9 g |
| designation | 090202EL | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3591" | 9.120 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Chip breaker (Ceratizit) / CBMD | -US12 | |
| Coating name / Grade (Ceratizit) / COATN | BK6440 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
