Ceratizit TOHX 090204FN-G12 K10 CoreLine HM indexable Insert 6260351600 (0661138)
Ceratizit TOHX 090204FN-G12 K10 CoreLine HM indexable Insert 6260351600 (0661138)
Couldn't load pickup availability
Ceratizit Article Number: 6260351600
Ceratizit Material Number: 12548792
Ceratizit Komet Number (Unpacked): W30 14720.0421
Ceratizit Komet Number (Packed): W30147200421
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

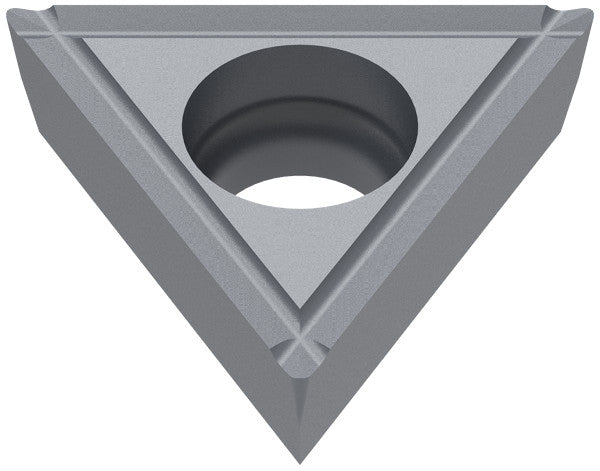

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 090204FN-G12 K10 CoreLine HM indexable Insert 6260351600 | |
| EDP # | 0661138 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 1.8 g |
| designation | 090204FN | |

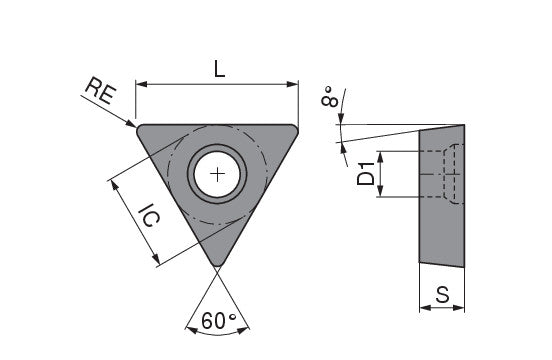

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3591" | 9.120 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOHX 090204FN | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
