Ceratizit TOEX 090202SN-010D_A2 CTB6130 CoreLine PcBN indexable Insert 6263210009 (0661150)
Ceratizit TOEX 090202SN-010D_A2 CTB6130 CoreLine PcBN indexable Insert 6263210009 (0661150)
Couldn't load pickup availability
Ceratizit Article Number: 6263210009
Ceratizit Material Number: 12548808
Ceratizit Komet Number (Unpacked): W30 14990.0240
Ceratizit Komet Number (Packed): W30149900240
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

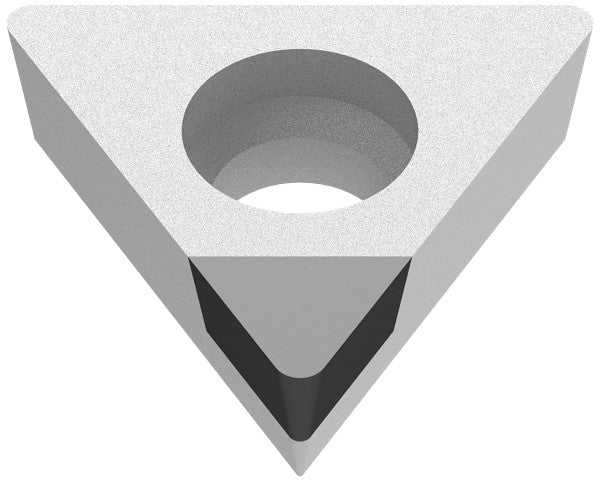

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

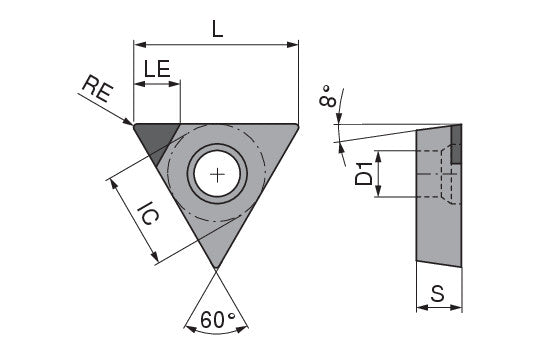

| Properties | ||
|---|---|---|
| Name | Ceratizit TOEX 090202SN-010D_A2 CTB6130 CoreLine PcBN indexable Insert 6263210009 | |
| EDP # | 0661150 | |
| Weight (1 pc.) | 0.2 oz | 4.7 g |
| designation | 090202TN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3591" | 9.120 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| support chamfer angle / GB | 20 ° | |
| Cutting edge effective length / LE | 0.1063" | 2.700 mm |
| Face land width / BN | 0.0039" | 0.100 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOEX 090202TN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTB6130 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
