Ceratizit TOHX 140302FR-G12 K10 CoreLine HM indexable Insert 6260352500 (0661217)
Ceratizit TOHX 140302FR-G12 K10 CoreLine HM indexable Insert 6260352500 (0661217)
Couldn't load pickup availability
Ceratizit Article Number: 6260352500
Ceratizit Material Number: 12548917
Ceratizit Komet Number (Unpacked): W30 26420.0221
Ceratizit Komet Number (Packed): W30264200221
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 140302FR-G12 K10 CoreLine HM indexable Insert 6260352500 | |
| EDP # | 0661217 | |
| Weight (1 pc.) | 0.1 oz | 4.0 g |
| designation | 140302FR | |

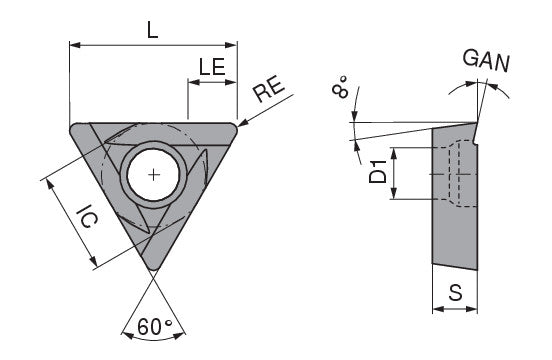

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.5480" | 13.920 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| Cutting edge effective length / LE | 0.1772" | 4.500 mm |
| Size | 14.0000" | 355.600 mm |
| Designation | TOHX 140302FR | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
