Ceratizit TOHX 140304EN BK6110 CoreLine - HM indexable Insert - 6262145700 (0661220)
Ceratizit TOHX 140304EN BK6110 CoreLine - HM indexable Insert - 6262145700 (0661220)
Couldn't load pickup availability
Ceratizit Article Number: 6262145700
Ceratizit Material Number: 12548928
Ceratizit Komet Number (Unpacked): W30 26600.046110
Ceratizit Komet Number (Packed): W3026600046110
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

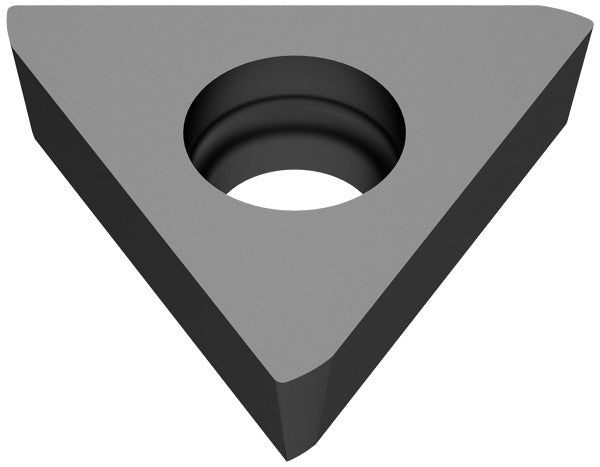

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 140304EN BK6110 CoreLine - HM indexable Insert - 6262145700 | |
| EDP # | 0661220 | |
| Weight (1 pc.) | 0.1 oz | 4.2 g |
| designation | 140304EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.5354" | 13.600 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| Size | 14.0000" | 355.600 mm |
| Designation | TOHX 140304EN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK6110 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
