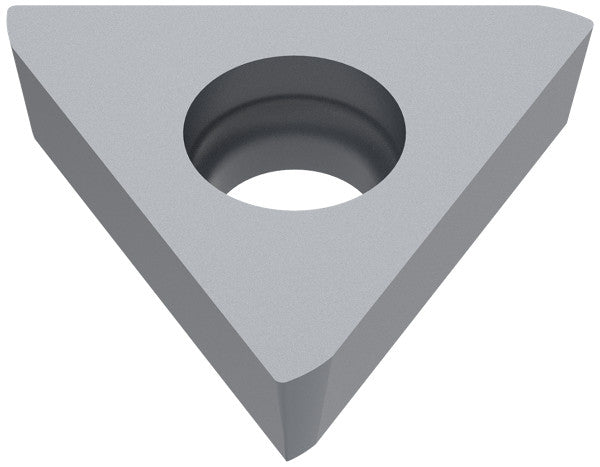

Ceratizit TOHX 140305EN BK7615 CoreLine - HM indexable Insert - 6262186100 (0661223)
Ceratizit TOHX 140305EN BK7615 CoreLine - HM indexable Insert - 6262186100 (0661223)
Couldn't load pickup availability
Ceratizit Article Number: 6262186100
Ceratizit Material Number: 12548932
Ceratizit Komet Number (Unpacked): W30 26600.057615
Ceratizit Komet Number (Packed): W3026600057615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOHX 140305EN BK7615 CoreLine - HM indexable Insert - 6262186100 | |
| EDP # | 0661223 | |
| Weight (1 pc.) | 0.2 oz | 4.3 g |
| designation | 140305EN | |
| Corner radius / RE | 0.0197" | 0.500 mm |
| Cutting edge length / L | 0.5315" | 13.500 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| Size | 14.0000" | 355.600 mm |
| Designation | TOHX 140305EN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
