Description
Ceratizit Article Number: 6263200909
Ceratizit Material Number: 12548954
Ceratizit Komet Number (Unpacked): W30 26940.0557
Ceratizit Komet Number (Packed): W30269400557
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

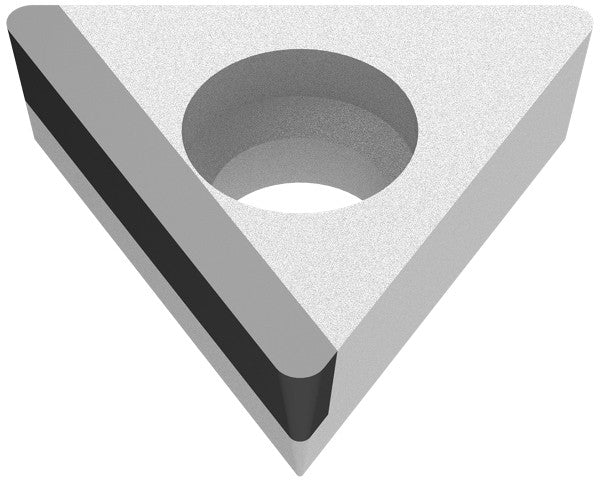

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOEX 140305TNN-010D_A14 CTBS12U 6263200909 | |
| EDP # | 0661240 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 140305TNN | |

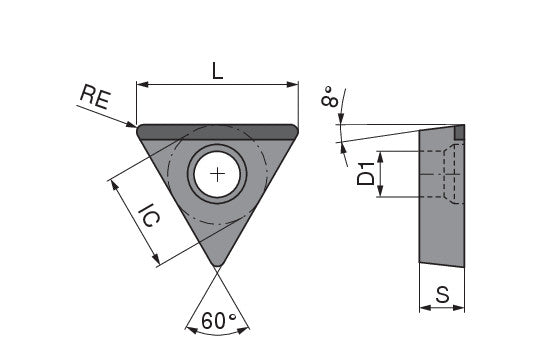

| Corner radius / RE | 0.0197" | 0.500 mm |
| Cutting edge length / L | 0.5315" | 13.500 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| support chamfer angle / GB | 20 ° | |
| Cutting edge effective length / LE | 0.5315" | 13.500 mm |
| Face land width / BN | 0.0039" | 0.100 mm |
| Insert index count / NOI | 1 | |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBS12U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
