Description
Ceratizit Article Number: 6263200509
Ceratizit Material Number: 12548955
Ceratizit Komet Number (Unpacked): W30 26990.0257
Ceratizit Komet Number (Packed): W30269900257
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

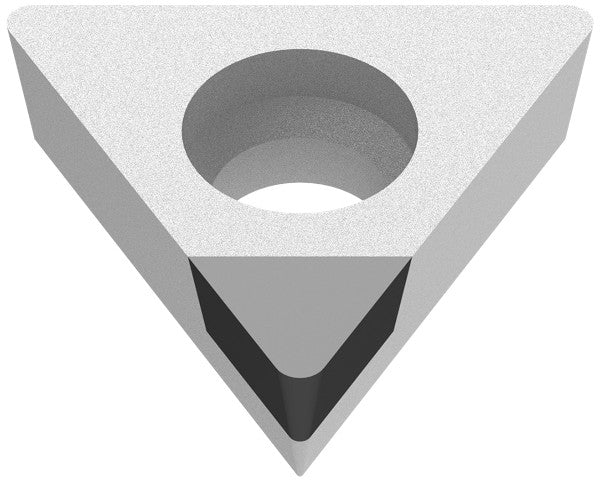

| Name | Ceratizit So.-WSP TOEX 14xx02TN-010D_A2 CTBS12U CoreLine PcBN indexable Insert 6263200509 | |
| EDP # | 0661243 | |
| Weight (1 pc.) | 1.0 oz | 15.0 g |
| designation | 140302TN | |

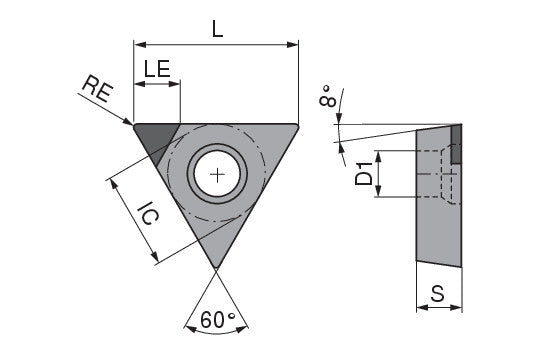

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.5362" | 13.620 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| support chamfer angle / GB | 20 ° | |
| Cutting edge effective length / LE | 0.1063" | 2.700 mm |
| Face land width / BN | 0.0039" | 0.100 mm |
| Size | 14.0000" | 355.600 mm |
| Designation | TOEX 140302TN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| TCE (NOI) | A (1) | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS12U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
