Description
Ceratizit Article Number: 6262187500
Ceratizit Material Number: 12548970
Ceratizit Komet Number (Unpacked): W30 44600.087615
Ceratizit Komet Number (Packed): W3044600087615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

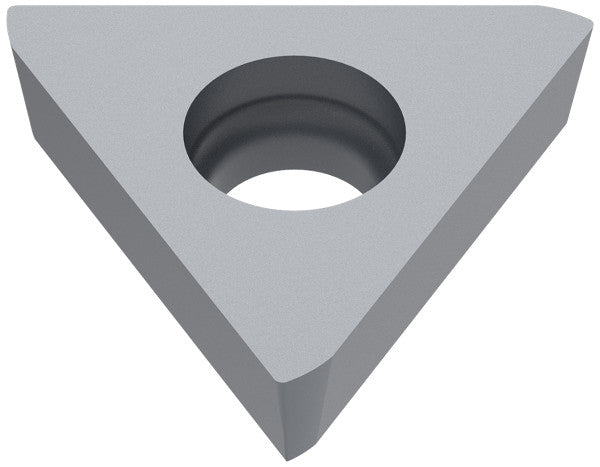

| Name | Ceratizit TOHX 22T308EN BK7615 CoreLine - HM indexable Insert - 6262187500 | |
| EDP # | 0661251 | |
| Weight (1 pc.) | 0.5 oz | 13.0 g |
| designation | 22T308EN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.8189" | 20.800 mm |
| Insert thickness / S | 0.1693" | 4.300 mm |
| Fixing hole diameter / D1 | 0.1654" | 4.200 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Size | 22.0000" | 558.800 mm |
| Designation | TOHX 22T308EN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
