Description
Ceratizit Article Number: 6260217502
Ceratizit Material Number: 12548973
Ceratizit Komet Number (Unpacked): W30 44660.086425
Ceratizit Komet Number (Packed): W3044660086425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

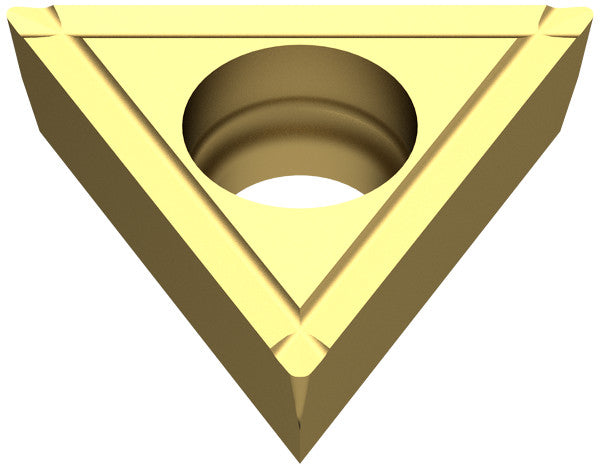

| Name | Ceratizit TOHX 22T308EN-G06 BK6425 CoreLine HM indexable Insert 6260217502 | |
| EDP # | 0661254 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 22T308EN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.8197" | 20.820 mm |
| Insert thickness / S | 0.1693" | 4.300 mm |
| Fixing hole diameter / D1 | 0.2776" | 7.050 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Size | 22.0000" | 558.800 mm |
| Designation | TOHX 22T308EN | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
