Ceratizit CCGT 09T304FN-25Q CTPX710 CoreLine Carbide Turning indexable Insert 7024876600 (0661373)
Ceratizit CCGT 09T304FN-25Q CTPX710 CoreLine Carbide Turning indexable Insert 7024876600 (0661373)
Couldn't load pickup availability
Ceratizit Article Number: 7024876600
Ceratizit Material Number: 12526057
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

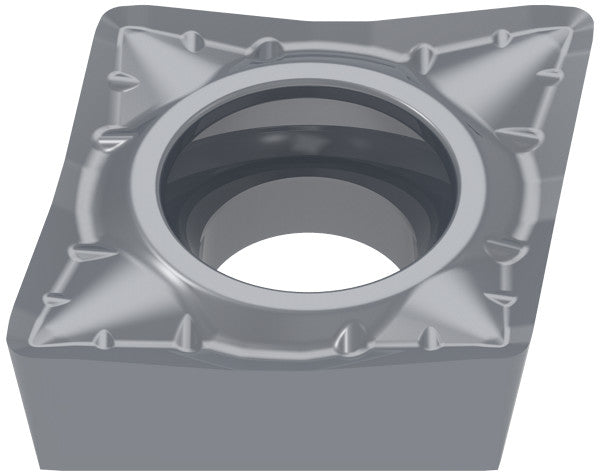

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGT 09T304FN-25Q CTPX710 CoreLine Carbide Turning indexable Insert 7024876600 | |
| EDP # | 0661373 | |
| Weight (1 pc.) | 0.2 oz | 4.5 g |
| Product-Carbon-Footprint | C | |
| designation | 09T304FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3819" | 9.700 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 32.51FN | ||
| Size | 9.0000" | 228.600 mm |
| Designation | CCGT 09T304FN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -25Q | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
